Description

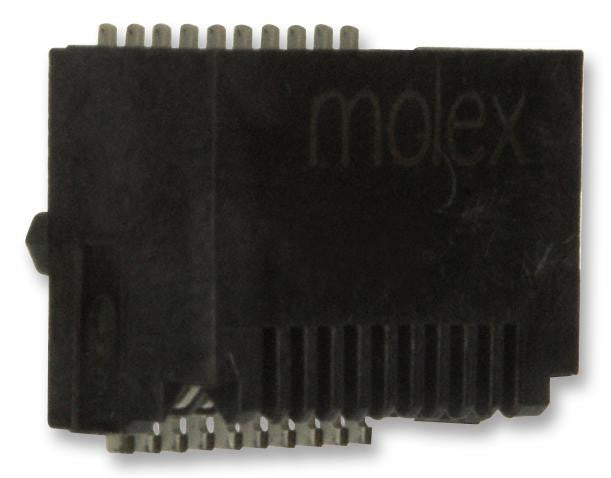

The 74441-0010 is a 20-circuit 2-row 0.80mm pitch SFP, SFP Plus (SFP+) Host Right Angle Connector, Z-axis pluggable, with 0.76µm gold plating, gold-plated copper alloy contacts, PCB mounting and surface mount termination. This 74441 series connector is made of high temperature thermoplastic, can be used with EMI shield, 73927 SFP cage, 86025 LC duplex cable assembly, guide frame, 73939 HSSDC2 cable assembly, mates with SFP modules, suitable for module-to-board application.
- Black colour
- UL94V-0 Flammability rating
- 0.5A Current rating per contact
- 30VAC/DC Voltage rating
- -40 to 85°C Temperature range
Applications
Industrial
Product details
| No. of Contacts | 20Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Connector Type | Wire to Board |
| Product Range | 74441 Series |
| Contact Material | Copper Alloy |
| Contact Termination Type | Surface Mount |
| Connector Mounting | PCB Mount |
Other details
| Brand | MOLEX |
| Part Number | 74441-0010 |
| Quantity | Each (Supplied on Cut Tape) |
