Description

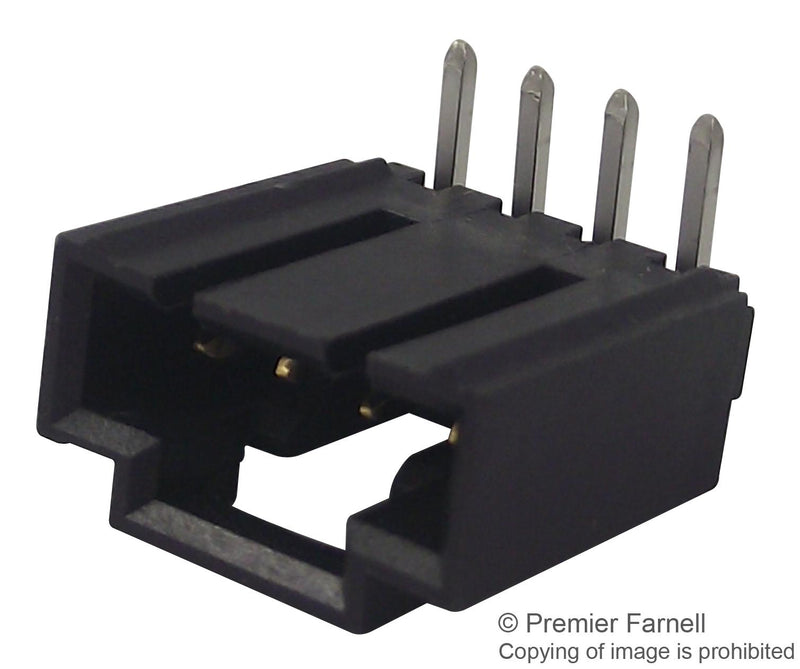

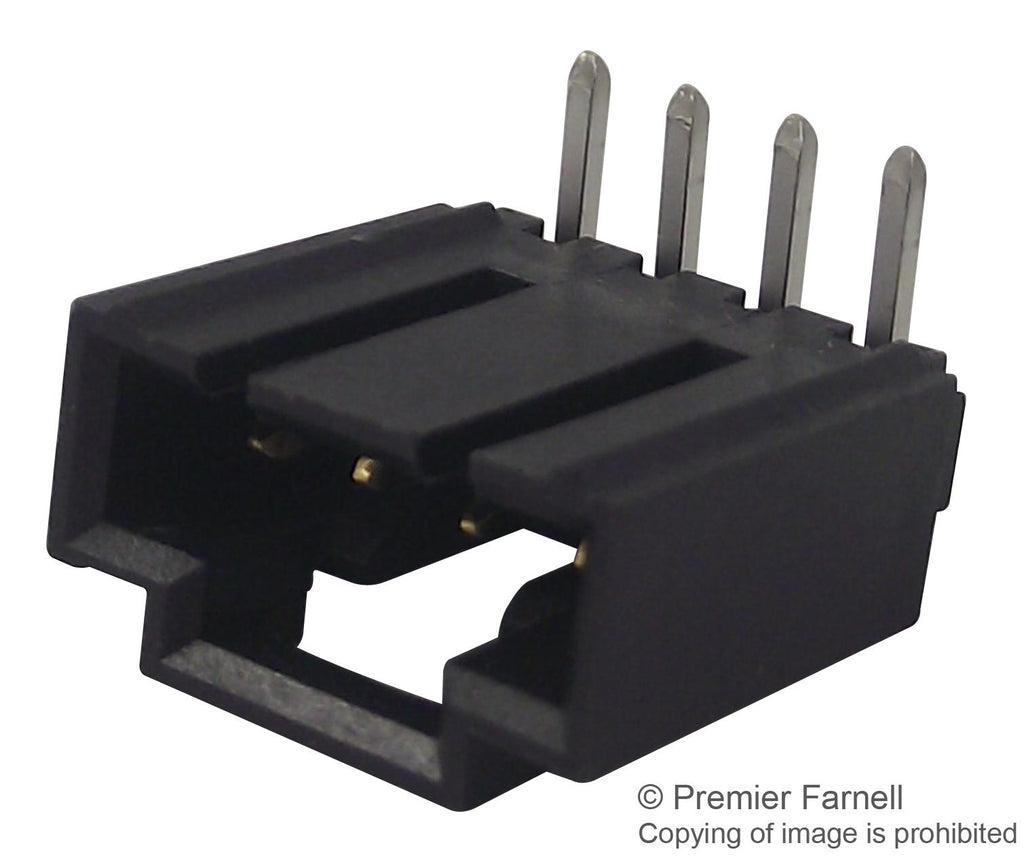

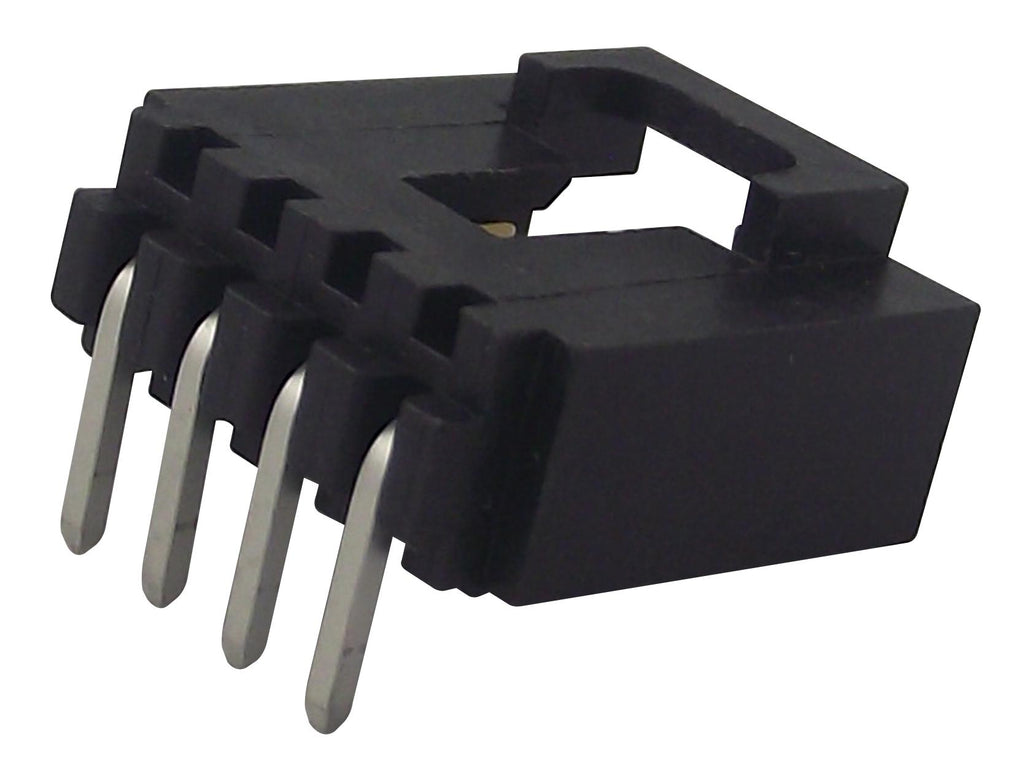

The 70553-0108 is a 4-circuit 1-row 2.54mm pitch SL� right angle header, with 3.05mm pocket, gold-plated phosphor bronze contacts, tin-plated PC tail and through hole termination. This 70553 series PCB header is made of high temperature thermoplastic, mates with SL� crimp housing 70066 option N, 70066 option G, 70430 option G, 70400 option G, suitable for signal and wire-to-board applications. SL� (Stackable Linear) products are capable of mating with select C-Grid® and KK® products.
- Positive-lock mating interface - Secures retention with receptacles in high-vibration environments
- Low-profile, stackable housing, header provides design flexibility
- Black colour
- UL94V-0 flammability rating
- Current rating per contact is 3A
- Voltage rating is 250V
- Temperature range from -40 to 105°C
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Industrial, Robotics, Medical
Other details
| Brand | MOLEX |
| Part Number | 70553-0108 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Drawing EN | |
