Description

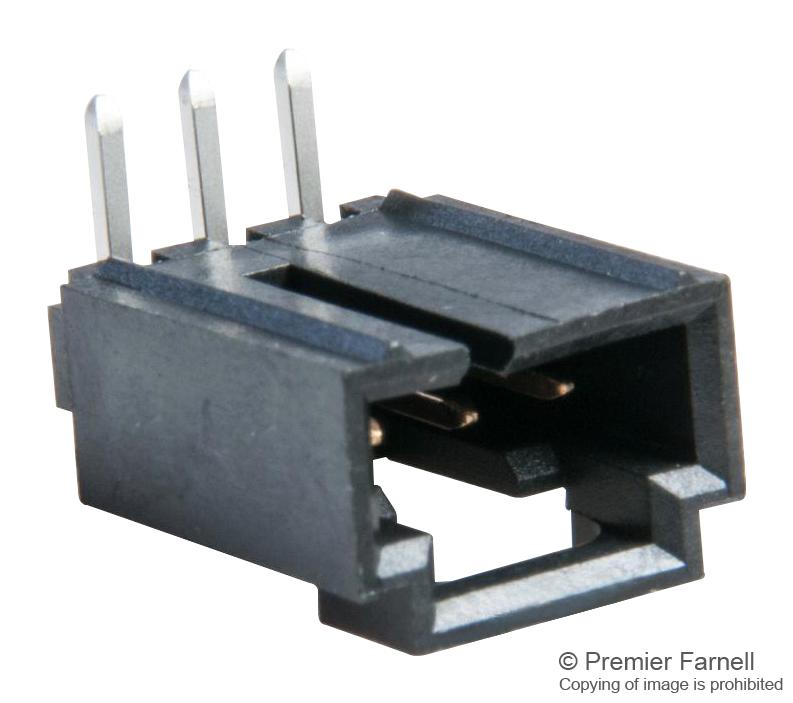

The 70553-0002 is a 3-way 1-row right angle SL� Header with gold-plated contacts. This 70553 series low profile PCB header comes with a high temperature thermoplastic resin housing and 3.05mm pocket. It mates with 70066 option N, 70430, 70400, 70066 option G, 70066 option A SL� crimp housing. SL products are capable of mating with select C-Grid® and KK® products. This product family is suitable for low-power signal applications. Positive-lock mating interface ensures secure retention with receptacles in high-vibration environments. The header is suitable for signal and wire-to-board applications.
- Black colour
- UL94V-0 flammability rating
- Terminal features two independent points of contact
- Fully shrouded
- Lock to mating part
- Polarized to mating part
- Maximum durability of 50 mating cycles
- Maximum current per contact is 3A
- Maximum voltage rating is 250V
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical
Other details
| Brand | MOLEX |
| Part Number | 70553-0002 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| CAD Multiple Formats EN | |
| Product Change Notice EN | |
| Drawing EN | |
