Description

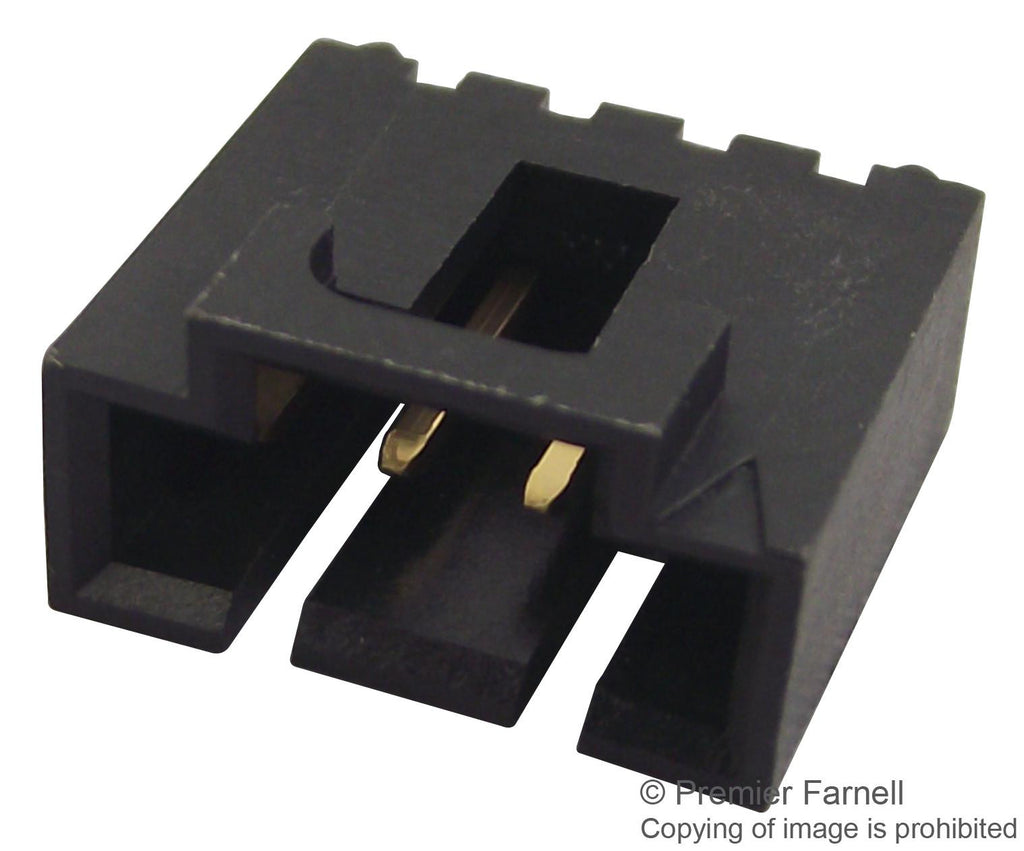

The 70543-0003 is a 4-circuit 1-row 2.54mm pitch SL� Vertical Header, with 3.05mm pocket, gold-plated phosphor bronze contacts, tin-plated PC tail and through hole termination. This 70543 series PCB header is made of high temperature thermoplastic, mates with SL� crimp housing 70066 option N, 70066 option G, 70066 option A, 70430 option G, 70400 option G, suitable for signal and wire-to-board applications. SL� (Stackable Linear) products are capable of mating with select C-Grid� and KK� products.
- Positive-lock mating interface - Secures retention with receptacles in high-vibration environments
- Low-profile, stackable housing, header - Provides design flexibility
- Black colour
- UL94V-0 Flammability rating
- 3A Current rating per contact
- 250V Voltage rating
- -40 to 105�C Temperature range
Applications
Automotive, Sensing & Instrumentation, Commercial, Consumer Electronics, Computers & Computer Peripherals, HVAC, Communications & Networking, Industrial, Robotics, Medical
Product details
| No. of Contacts | 4Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | SL 70543 Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 1Rows |
Other details
| Brand | MOLEX |
| Part Number | 70543-0003 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
