Description
Product Overview

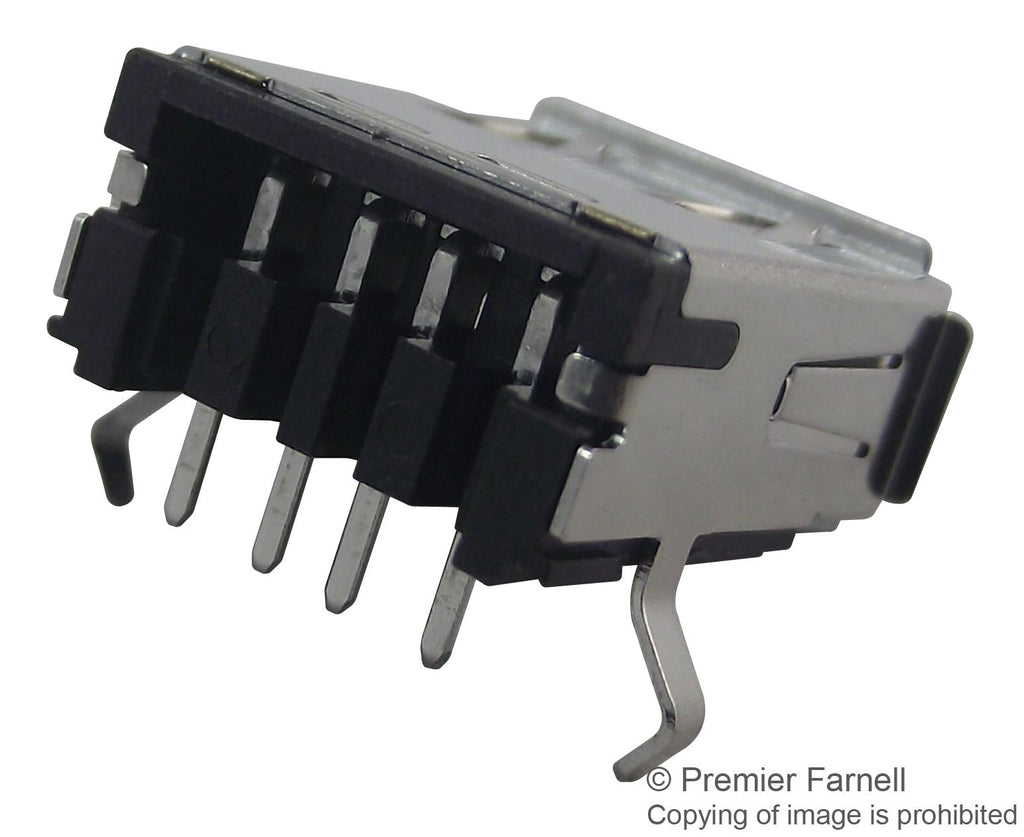

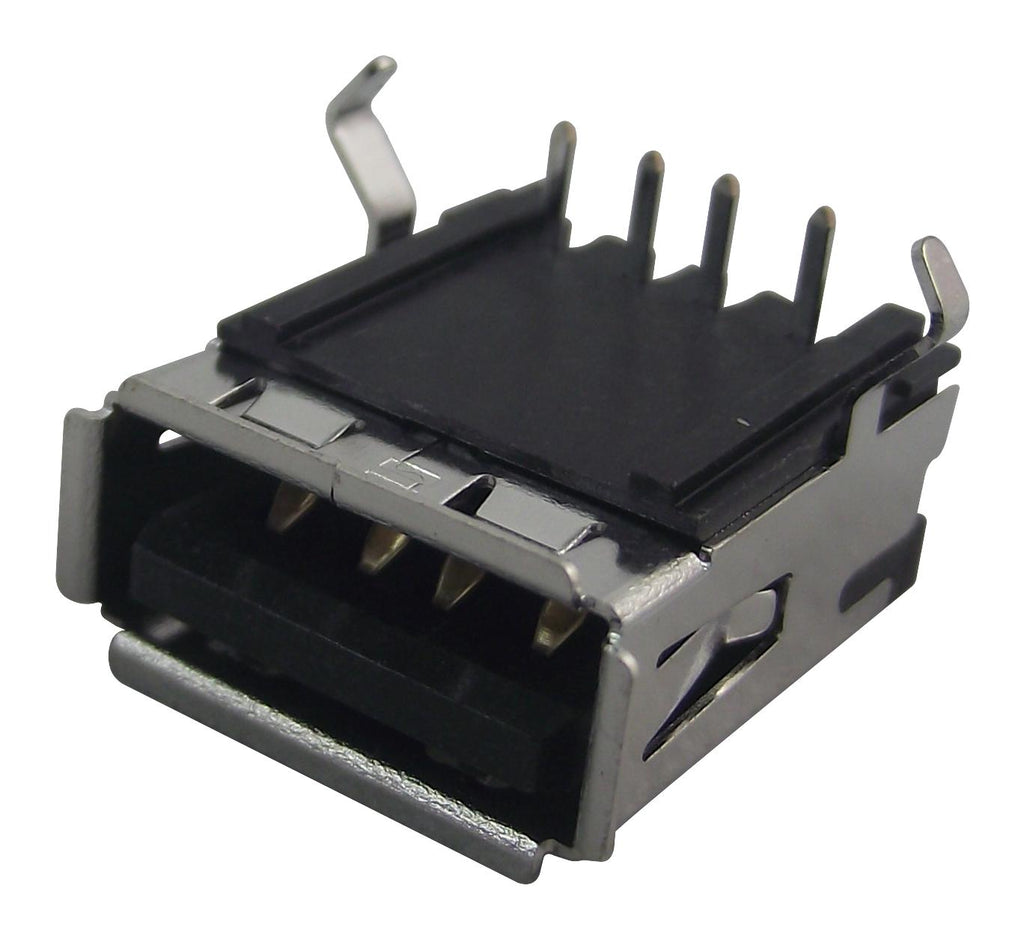

The 67643-2911 is a 4-way through-hole USB type-A receptacle with shielded I/O and right-angle orientation. It is suitable for wire-to-board applications. It mates with USB type-A plug. It has 0.76µm gold-plated phosphor bronze contacts, tin-plated termination and high-temperature black nylon.
- Without upper flange for IR reflow process
- Maximum rated current is 1.5A
- Maximum voltage is 30V
- Operating temperature range from -40 to 85°C
Product details
Other details
| Brand | MOLEX |
| Part Number | 67643-2911 |
| Quantity | Each |
| Technical Data Sheet EN |  |
