Description

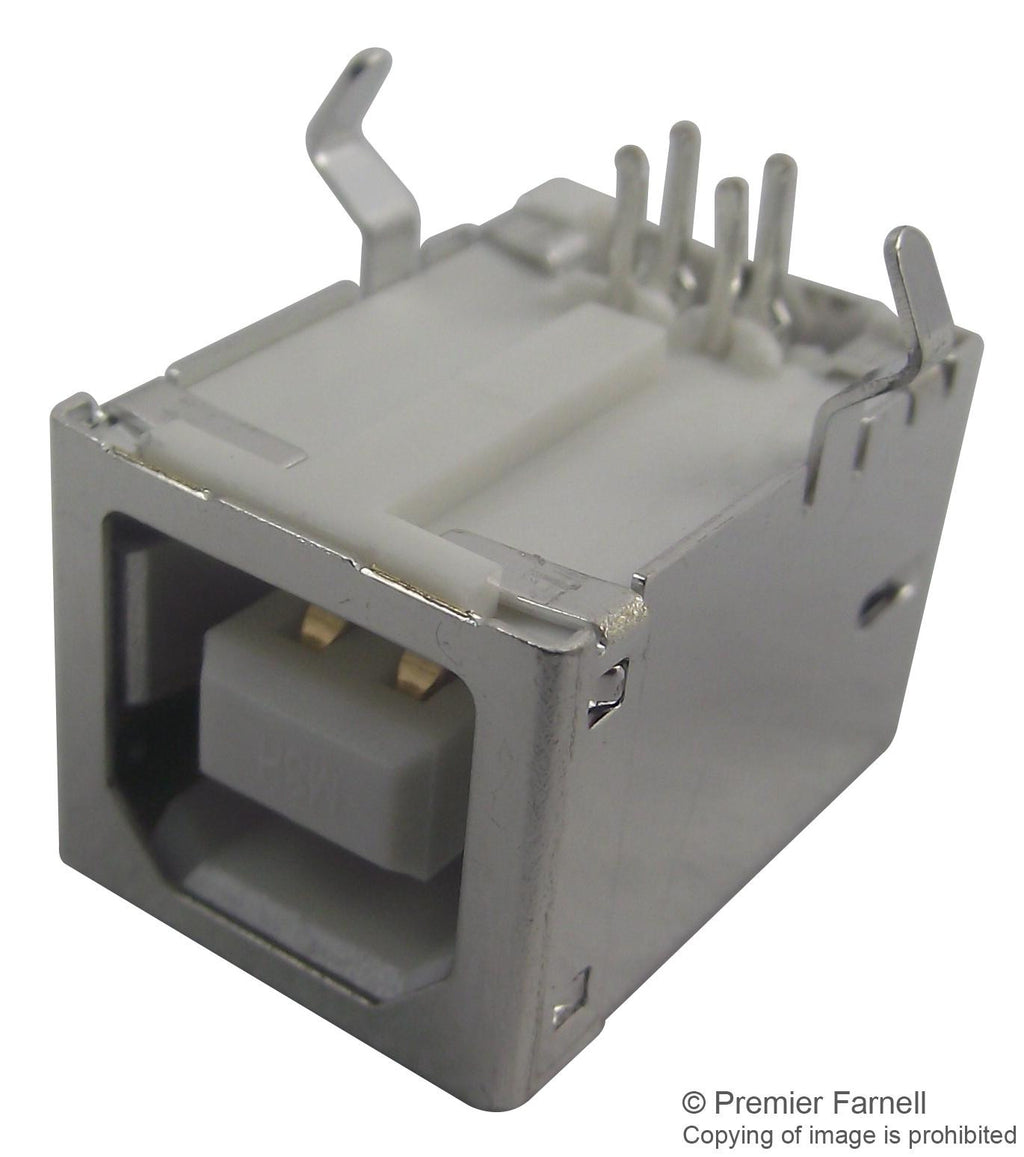

The 67068-9000 is a 4-circuit 2-row right angle Universal Serial Bus (USB) shielded I/O Type B Receptacle, with kinked solder tabs, gold-plated phosphor bronze contacts and through hole termination. This 67068 series connector is made of polyester, mates with USB Type B plug, suitable for wire-to-board application.
- Natural colour
- UL94V-0 Flammability rating
- 1.5A Current rating per contact
- 30V Voltage rating
- 0 to 50�C Temperature rating
Applications
Computers & Computer Peripherals
Product details
| No. of Positions | 4Ways |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Orientation | Right Angle |
| Connector Mounting | Through Hole Mount |
| USB Standard | USB 2.0 |
| USB Connector Type | USB Type B |
| Product Range | - |
| Gender | Receptacle |
Other details
| Brand | MOLEX |
| Part Number | 67068-9000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| Drawing EN | |
| 3D Product Image EN | |
