Description

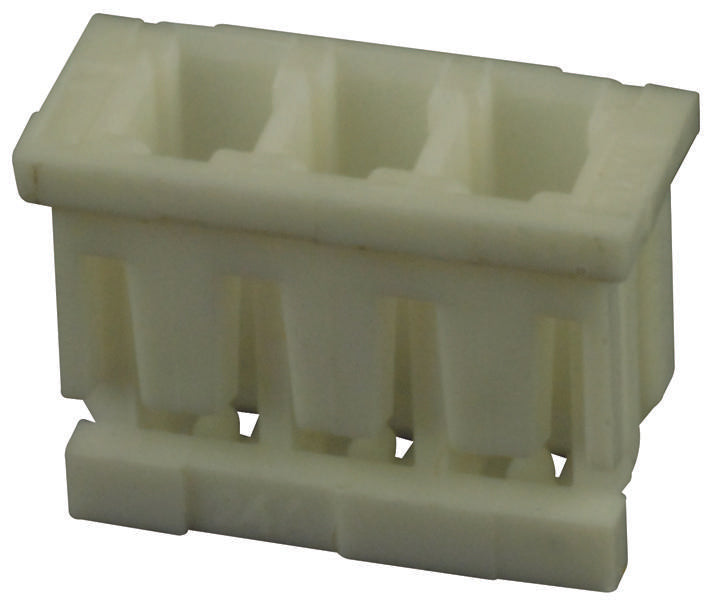

The 51065-0300 is a 3-way 1-row 2.00mm pitch female Micro-Latch� Wire-to-board housing with friction lock. It mates with 53253 and 53254 series PCB headers. The 51065 series crimp housing comes with natural colour polyester resin and is ideal for signal and wire-to-board applications. This system applies a friction lock mechanism where the noses on receptacle housings slide into the header wall openings. This ensures a durable mating and a protection of the electrical circuitries. The housing can be used with 50212 series crimp terminals.
- Friction lock good mating retention
- Design flexibility
- Polarizing features ensures mating in a proper orientation
- UL94V-0 flammability rating
- Operating temperature range from -40 to 105°C
Communications & Networking, Consumer Electronics, Medical
Other details
| Brand | MOLEX |
| Part Number | 51065-0300 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Drawing EN | |
| CAD Multiple Formats EN | |
| Product Change Notice EN | |
