Description

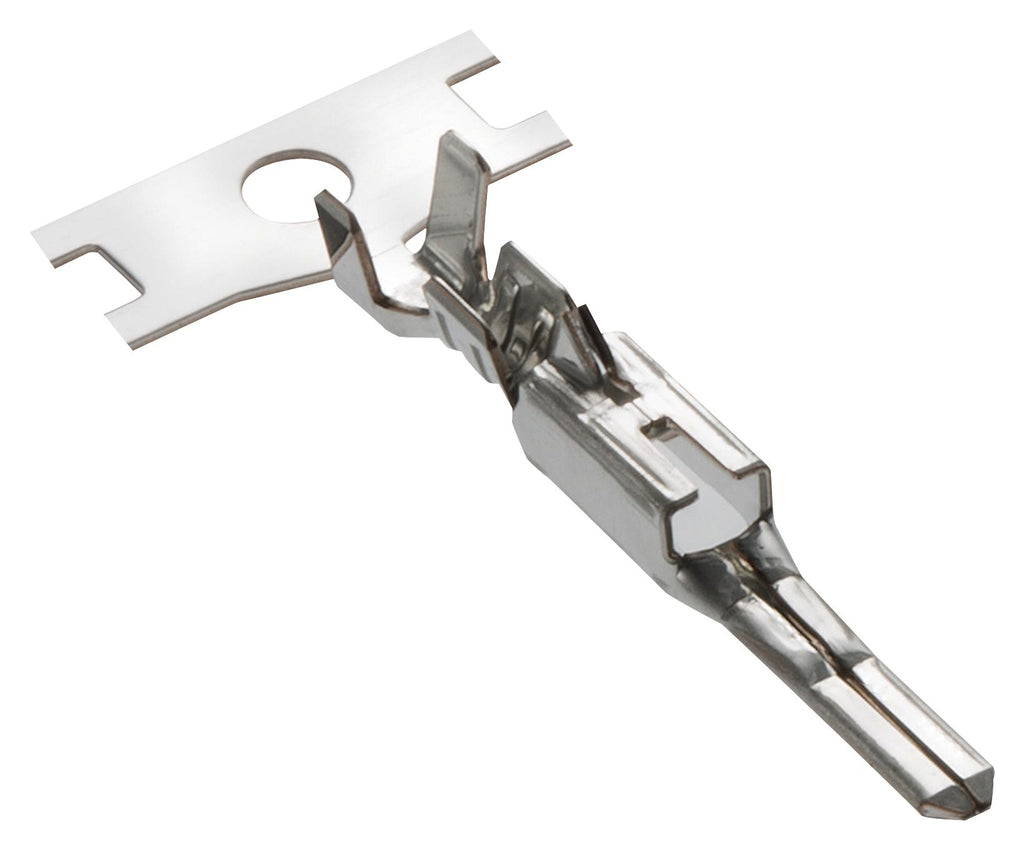

The 505608-0000 from Molex is a 505608 series, 2.50mm and 3.30mm pitch CP-3.3 male crimp terminal. Suitable for use with 504694 plug housing and 505606 plug housing.
- Copper alloy with tin plated terminal
- Crimp or compression style termination interface
- Wire insulation diameter range from 1.55mm to 2.60mm
- Wire size range from 22AWG to 18AWG
- Maximum current per contact is 6A
- Maximum voltage is 300V AC (RMS)/DC
Consumer Electronics, Industrial, Industrial Automation, Medical
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MOLEX |
| Part Number | 505608-0000 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
