Description

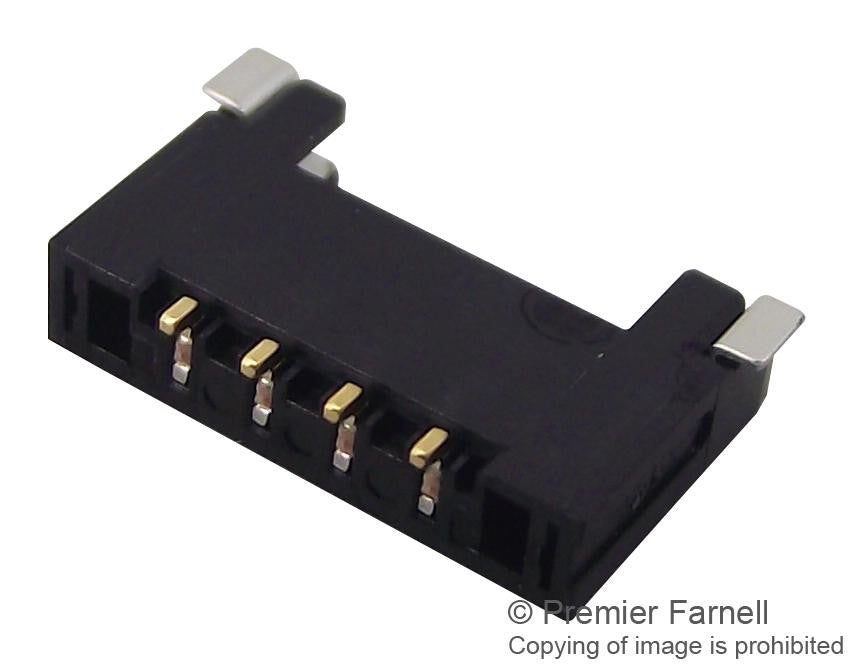

The 504050-0491 is a 4-circuit 1-row 1.50mm pitch Pico-Lock� surface mount Wire-to-board Right Angle Header with gold-plated copper alloy contacts, positive side locks and surface mount termination. This 504050 series PCB header is made of high temperature thermoplastic, mates with 504051 Pico-Lock� crimp housing, suitable for wire-to-board application.
- Ultra-low-profile mated height - Provides space savings
- Side positive locks - Ensures secure mating retention and additional space savings
- Beveled header pin design - Provides smoother mating and pin-and-contact protection
- Wide robust fitting nails/solder tabs - Offers secure PCB retention/additional mechanical stability
- Polarization/mating guide features - Prevents mismating and facilitate mating
- Black colour
- 3A Current rating per contact
- 150V Voltage rating
- -40 to 105°C Temperature range
Applications
Automotive, Consumer Electronics, Computers & Computer Peripherals, Industrial, Automation & Process Control, Security, Power Management, LED Lighting, Communications & Networking, Wireless
Product details
| No. of Rows | 1Rows |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Pitch Spacing | 1.5mm |
| Contact Termination Type | Surface Mount |
| No. of Contacts | 4Contacts |
| Product Range | Pico-Lock 504050 Series |
| Gender | Header |
Other details
| Brand | MOLEX |
| Part Number | 504050-0491 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
