Description

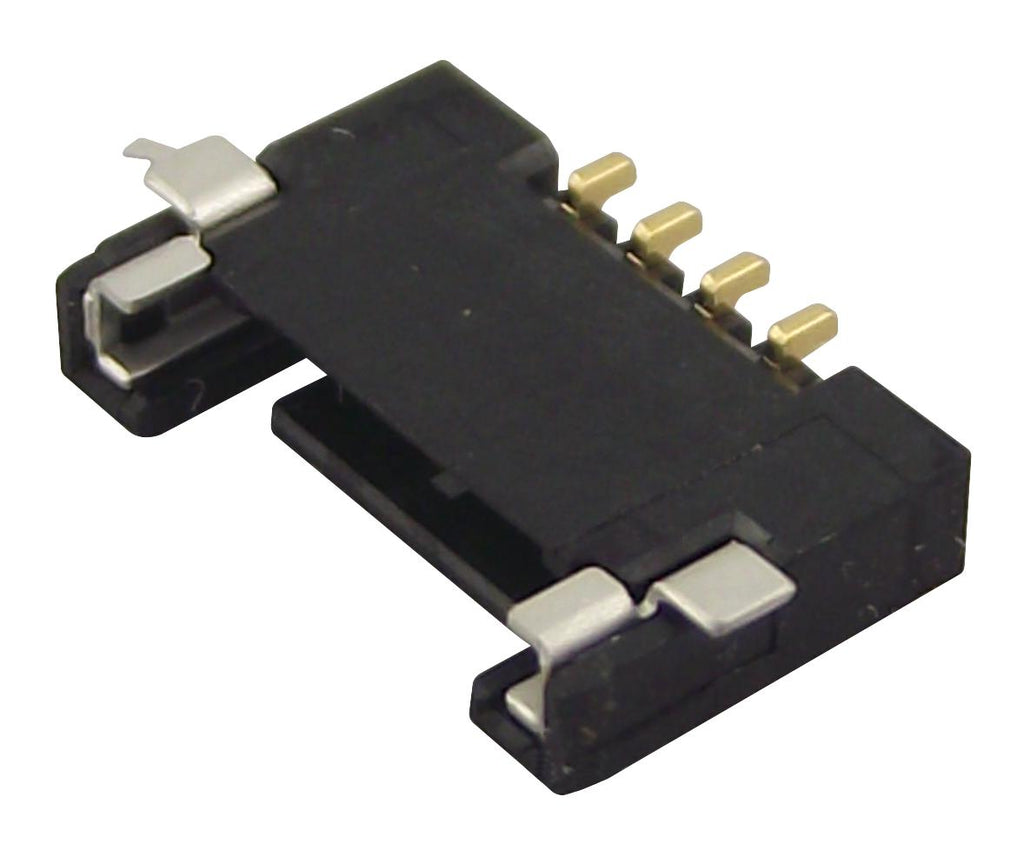

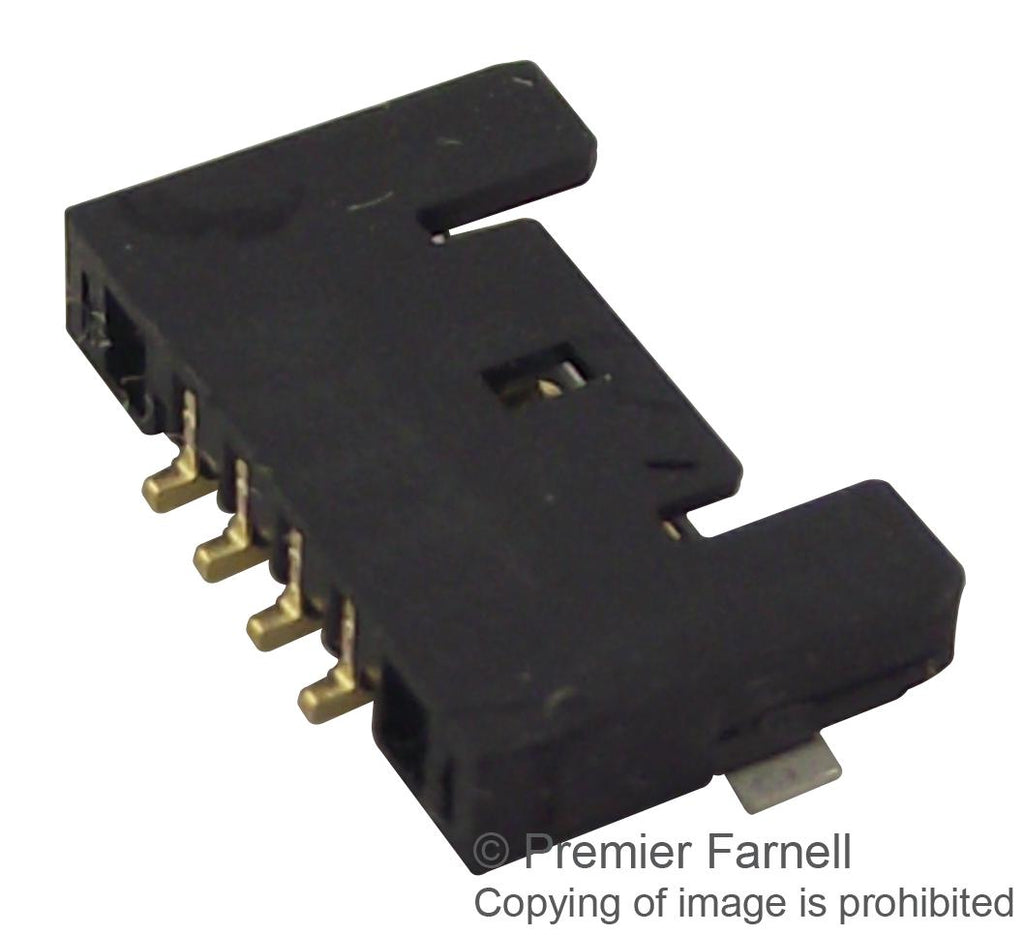

The 503763-0491 is a 4-circuit 1-row 1mm pitch Pico-Lock� surface mount right angle header with gold-plated copper alloy contacts, positive side locks and surface mount termination. This 503763 series PCB header is made of high temperature thermoplastic, mates with 503764 Pico-Lock� crimp housing, suitable for wire-to-board application.
- Ultra-low profile mated height provides space savings
- Side positive locks - Ensures secure mating retention and additional space savings
- Bevelled header pin design provides smoother mating and pin-and-contact protection
- Wide robust fitting nails/solder tabs offers secure PCB retention/additional mechanical stability
- Polarization/mating guide feature prevents mismating and facilitate mating
- Black colour
- ULSC-0 Flammability rating
- Current rating per contact is 1.5A
- Voltage rating is 150V
- Operating temperature range from -25°C to 85°C
Automotive, Communications & Networking, Consumer Electronics, Industrial, Lighting, Portable Devices, LED Lighting, Communications & Networking, Wireless
Other details
| Brand | MOLEX |
| Part Number | 503763-0491 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
| CAD Multiple Formats EN | |
| Product Change Notice EN | |
| Drawing EN | |
