Description

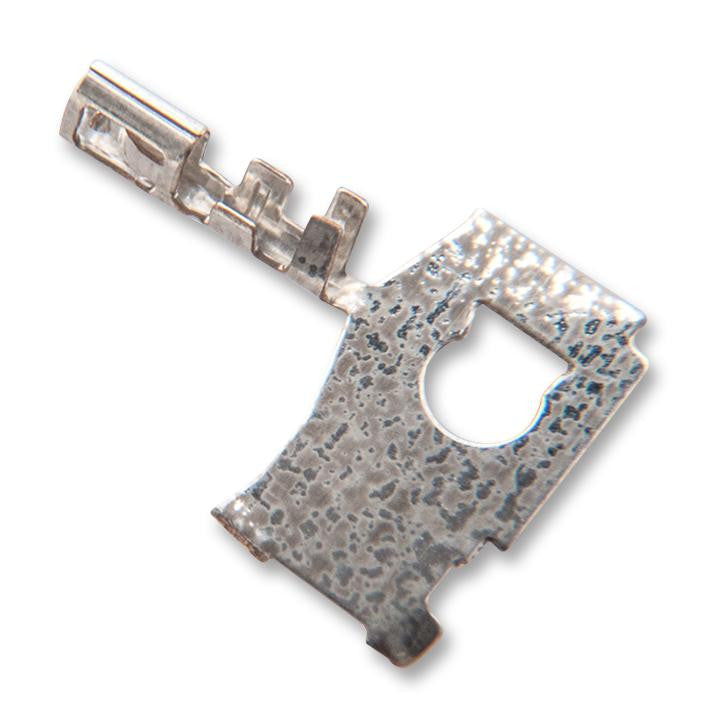

The 501334-0000 is a Pico-Clasp� 1.00mm pitch wire-to-board female socket Crimp Terminal made of phosphor bronze with tin plated finish. This 501334 series female crimp terminal accepts 32 to 28AWG wire. The socket terminal mates with 501331 PCB header for Pico-Clasp� and 104051 PCB header for IllumiMate�. It can be used with 501330 crimp housing for Pico-Clasp� and 104050 crimp housing for IllumiMate�. The terminal is suitable for signal applications.
- 1A Maximum current per contact
- 30 Maximum mating cycles durability
Applications
Consumer Electronics, Computers & Computer Peripherals
Product details
| Wire Size AWG Max | 28AWG |
| Contact Plating | Tin Plated Contacts |
| Product Range | 501334 Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Crimp |
| For Use With | 104050, 501330 Crimp Terminal Housings |
| Wire Size AWG Min | 32AWG |
| Contact Gender | Socket |
Other details
| Brand | MOLEX |
| Part Number | 501334-0000 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
