| ₹ 238.05 includes GST and import duties. | |
| B2B customers can avail ₹ 36.3 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

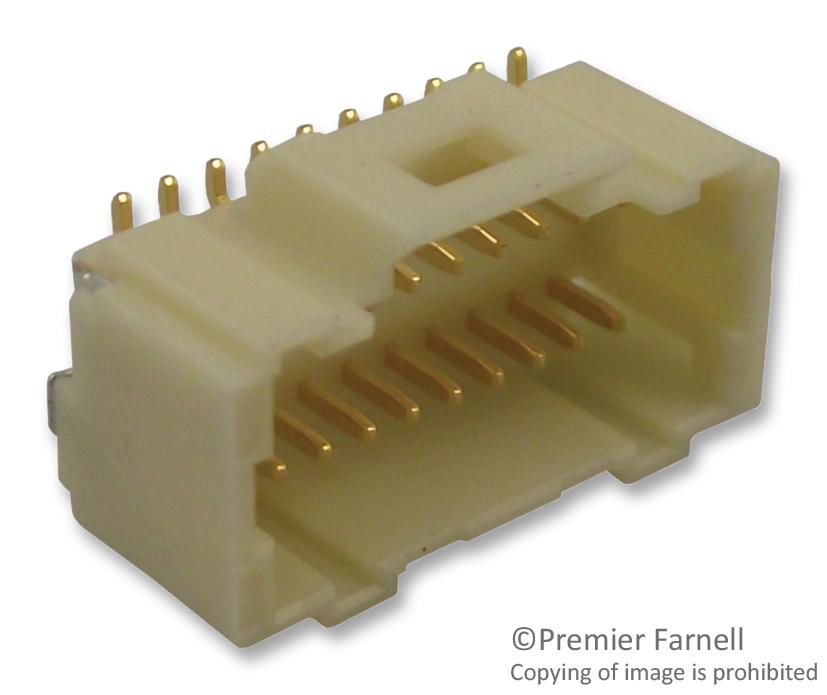

The 501190-3017 from Molex is a Pico-Clasp 1.00mm pitch, dual row, 30 circuits, vertical wire to board PCB header. It mates with 501189 Pico-Clasp wire-to-board female housing.
- Gold plated phosphor bronze contact
- Flammability rating is 94V-0
- Durability (mating cycles max) is 30
- Operating temperature range from -40°C to +105°C
- Surface mount termination
- Current rating is 1A
- Voltage rating is 50V
- Inner positive lock straight header
- UL E29179 recognized
Automotive, Consumer Electronics, Industrial, Medical
Other details
| Brand | MOLEX |
| Part Number | 501190-3017 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Drawing EN | |
| CAD Multiple Formats EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 233.29 |
| 3-5 | ₹ 230.91 |
| 5-10 | ₹ 226.15 |
| 10+ | ₹ 221.39 |
Bulk discount will be automatically applied during checkout based on quantity.
