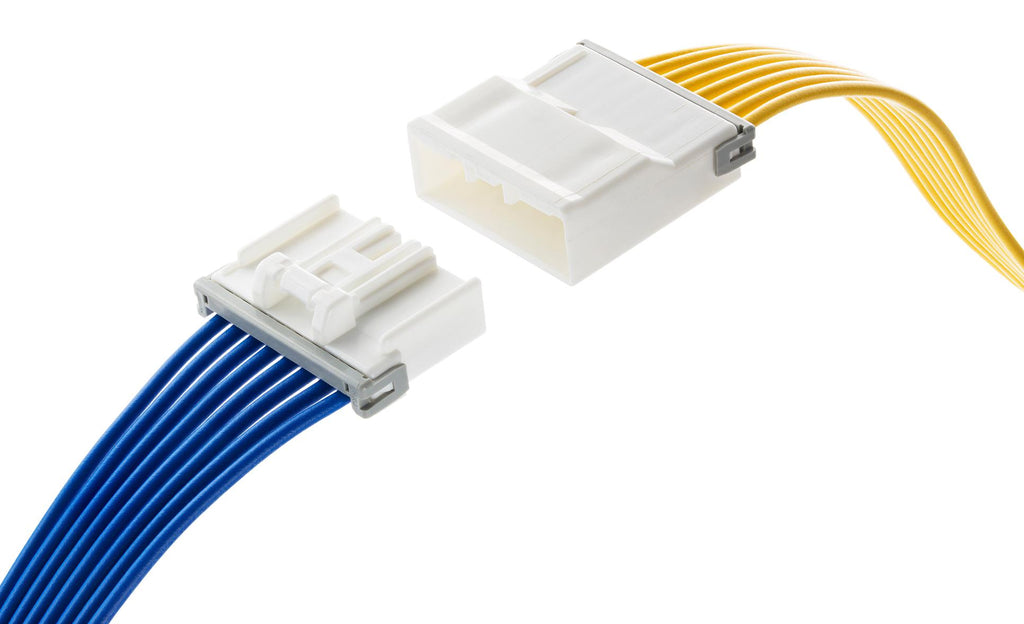

Ideal for compact applications, the CP-2.5 Mini Connector System provides electrical and mechanical reliability in a compact design that meets consumer and industrial industry requirements. Typical applications include consumer / home appliances and industrial / industrial automation.

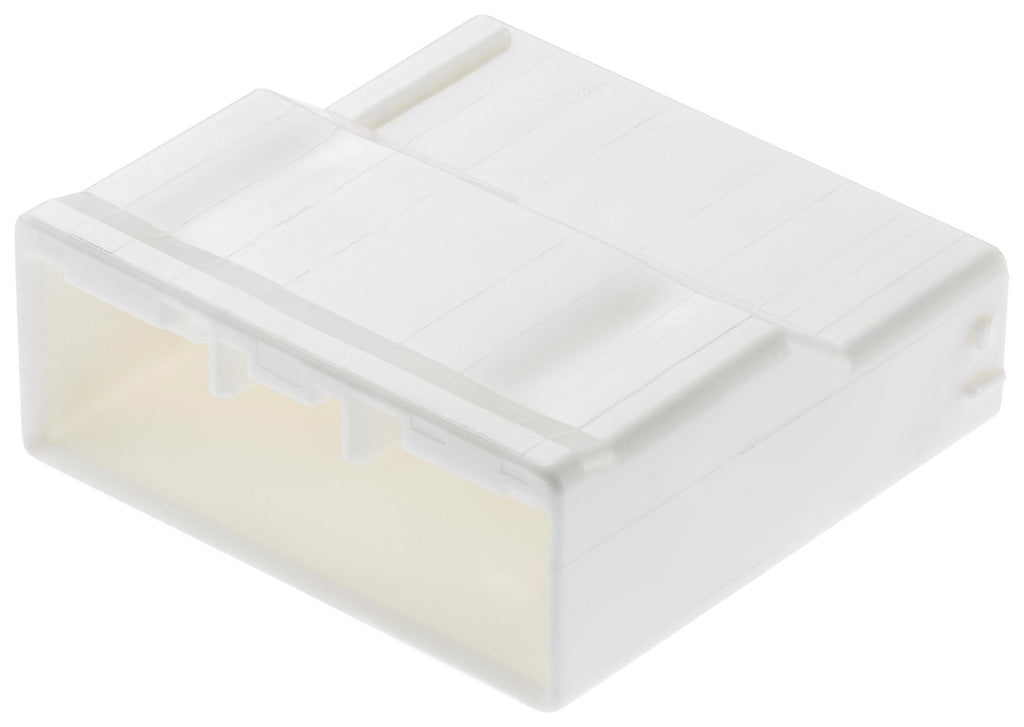

- 500593 series single row 2.50mm pitch CP-2.5 mini wire-to-wire plug housing

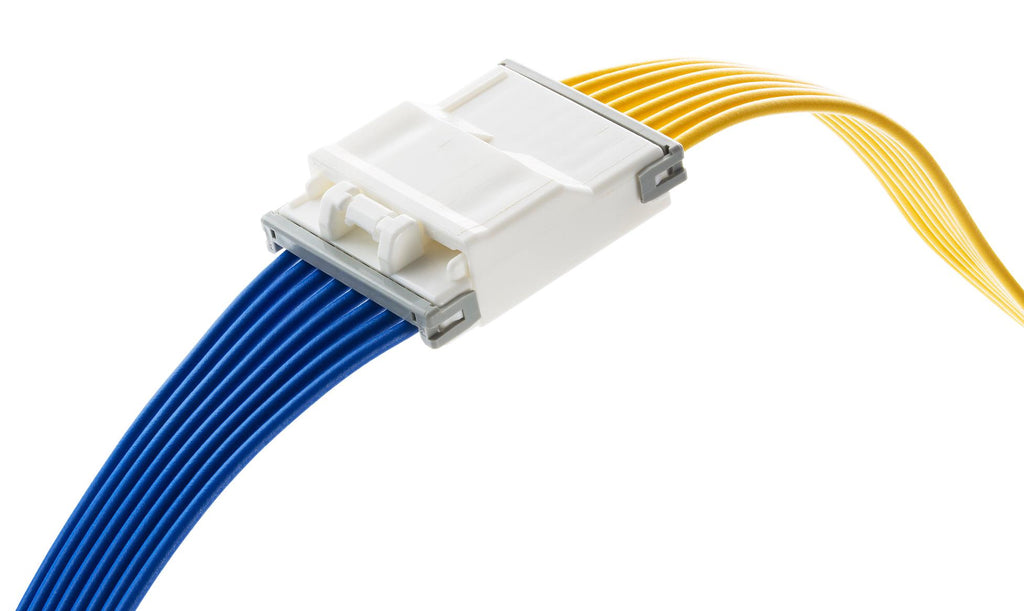

- Mates with CP-2.5 Mini receptacle housing 500592
- Operating temperature range from -40 to +85°C
- PBT UL94V-0 housing and retainer
- Durability (max) of 30 cycles
- Voltage (maximum) of 250VAC, current (maximum) of 3A
- Terminal position assurance (TPA) ensures that wires are fully inserted
Other details
| Brand |
MOLEX |
| Part Number |
500593-0200 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
