Description

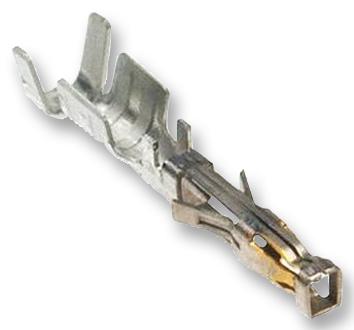

The 46235-5001 is a Micro-Fit 3.0� female crimp terminal made of copper-zinc-tin with gold-plated finish. It mates with 43031 Micro-Fit 3.0� male crimp terminals and accepts 20 to 30AWG wire. It can be suitable for use with the 43025, 43645 Micro-Fit 3.0� receptacle housings and 44133 Micro-Fit BMI� panel-mount receptacle housings. It features 90% increase in mating cycles (250 cycles) and up to 50% reduction in mating force.
- Maximum current per contact is 5A
Alternative Energy, Automotive, Communications & Networking, Consumer Electronics, Medical
Other details
| Brand | MOLEX |
| Part Number | 46235-5001 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 29.84 |
| 3-5 | ₹ 29.54 |
| 5-10 | ₹ 28.93 |
| 10+ | ₹ 28.32 |
Bulk discount will be automatically applied during checkout based on quantity.
