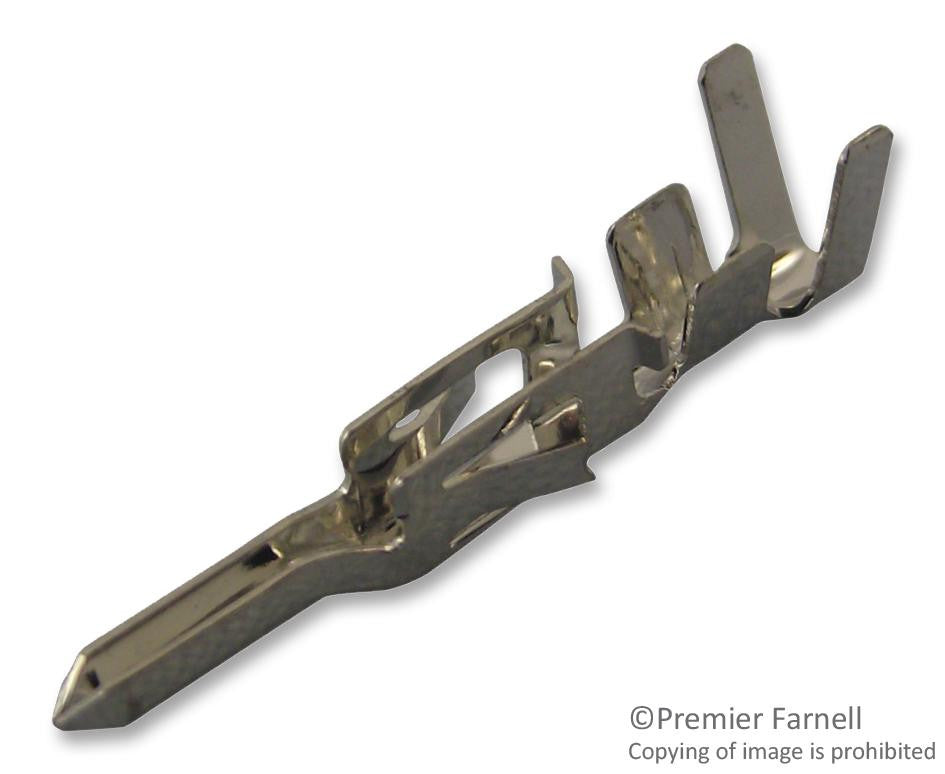

- Crimp terminals are produced from a proprietary, high-current alloy
- Terminals feature a patented, elongated dimple design
- Mini-Fit Plus terminals used in Mini-Fit Jr. header housings and Mini-Fit receptacles and plugs
- Crimp terminals are compatible with existing Molex crimp tooling
- Advanced crimp design
- Select series offer up to 75 mating cycles with tin plated terminals
Product details
| Contact Plating |
Tin Plated Contacts |
| Product Range |
46012 Series |
| Contact Material |
Copper |
| Contact Termination Type |
Crimp |
| For Use With |
5559 Mini-Fit Jr. Plugs, 42475 Mini-Fit BMI Panel Mount Plugs, 30068 Mini-Fit TPA Plugs |
| Contact Gender |
Pin |
Other details
| Brand |
MOLEX |
| Part Number |
46012-3142 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
