Description

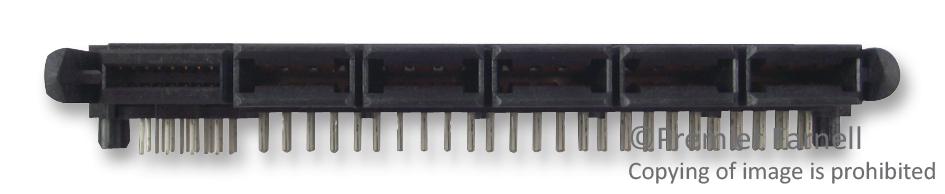

EXTreme LPHPower Connectors are high-current, low-profile hybrid power connectors. It extends mounting flexibility to backplane or midplane mating applications. Designed with power blades parallel to the PC board and height of 7.5mm allows greater system airflow which withstands 30A current rating.
- Receptacle side mates to standard EXTreme LPHPower plug
- Receptacle also mates with standard 1.57mm PCB gold finger card edge
- Rated for current interruption hot-plugging requirements
- Rugged signal and power contacts
- Two isolated power contacts per housing bay (top and bottom)
- Last-mate/first-break available on power contacts
Applications
Telecommunications, Industrial
Product details
| Connector Systems: Board-to-Board |
| Pitch Spacing: - |
| No. of Rows: 2Rows |
| No. of Contacts: 26Contacts |
| Connector Mounting: Through Hole Mount Right Angle |
| Product Range: LPH 45984 Series |
| Contact Material: Copper Alloy |
| Contact Plating: Gold Plated Contacts |
Other details
| Brand | MOLEX |
| Part Number | 45984-1422 |
| Quantity | Each |
| Technical Data Sheet EN |  |
