Description
Product Overview

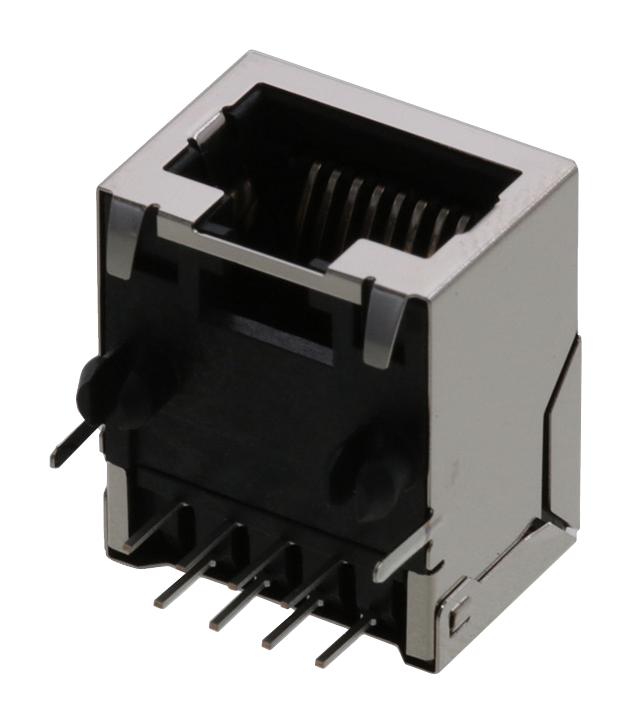

43202-8924 is a 43202 series low profile, shielded, right-angle, 8/8 RJ45 modular jack. Mates with FCC 68 plugs.
- 150V AC (RMS) maximum voltage
- 1.5A maximum current per contact
- Durability of 500 mating cycles max
- 94V-0 flammability
- Brass, phosphor bronze metal, gold plating mating and tin plating termination
- Right angle (side entry) orientation and through hole termination interface style
- Black high temperature thermoplastic resin
- PCB retention
- 1x1 port configuration
- Operating temperature range from -40 to +85°C
Product details
Other details
| Brand | MOLEX |
| Part Number | 43202-8924 |
| Quantity | Each |
| Technical Data Sheet EN |  |
