| ₹ 321.17 includes GST and import duties. | |
| B2B customers can avail ₹ 48.98 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

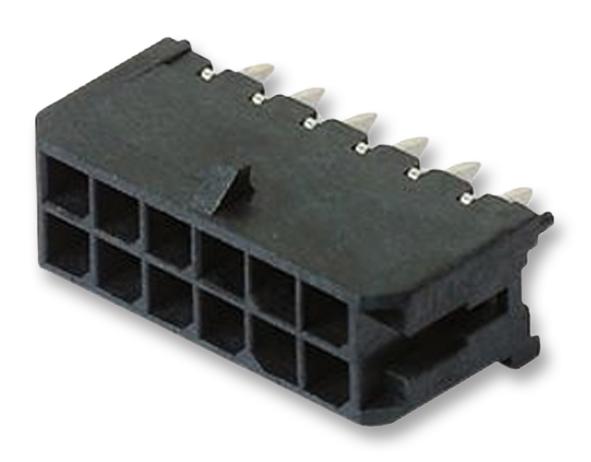

The Micro-Fit 3.0 series Connector is a 3mm pitch high-density, low-power connector system available in wire-to-wire and wire-to-board configurations with SMT and through-hole options and up to 8.5A to meet low- to mid-range power application needs. Molex's Micro-Fit 3.0 interconnects offer users a low- to mid-range power-distribution solution with the highest current in the smallest footprint available today. Based on a 3.0mm centerline Micro-Fit 3.0 is available in wire-to-wire and wire-to-board configurations, SMT and through-hole processing, 2 to 24 circuits and single- and dual-row versions. These can be purchased in pure tin or one of two thicknesses of select gold. Contacts are fully isolated on each side of the interface to eliminate potential arcing and incorporate four points of contact for redundancy. The housings utilize positive-lock features to prevent accidental disconnects.
- Fully isolated contacts
- Full polarization
- Positive locks
- UL94V-0 Flammability
Automotive, Consumer Electronics, Medical, Alternative Energy, Communications & Networking, Medical, Power Management, Industrial
Other details
| Brand | MOLEX |
| Part Number | 43045-0813 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| CAD Multiple Formats EN | |
| Packaging / Drawing / Footprint EN | |
| Product Change Notice EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 314.75 |
| 3-5 | ₹ 311.53 |
| 5-10 | ₹ 305.11 |
| 10+ | ₹ 298.69 |
Bulk discount will be automatically applied during checkout based on quantity.
