Description

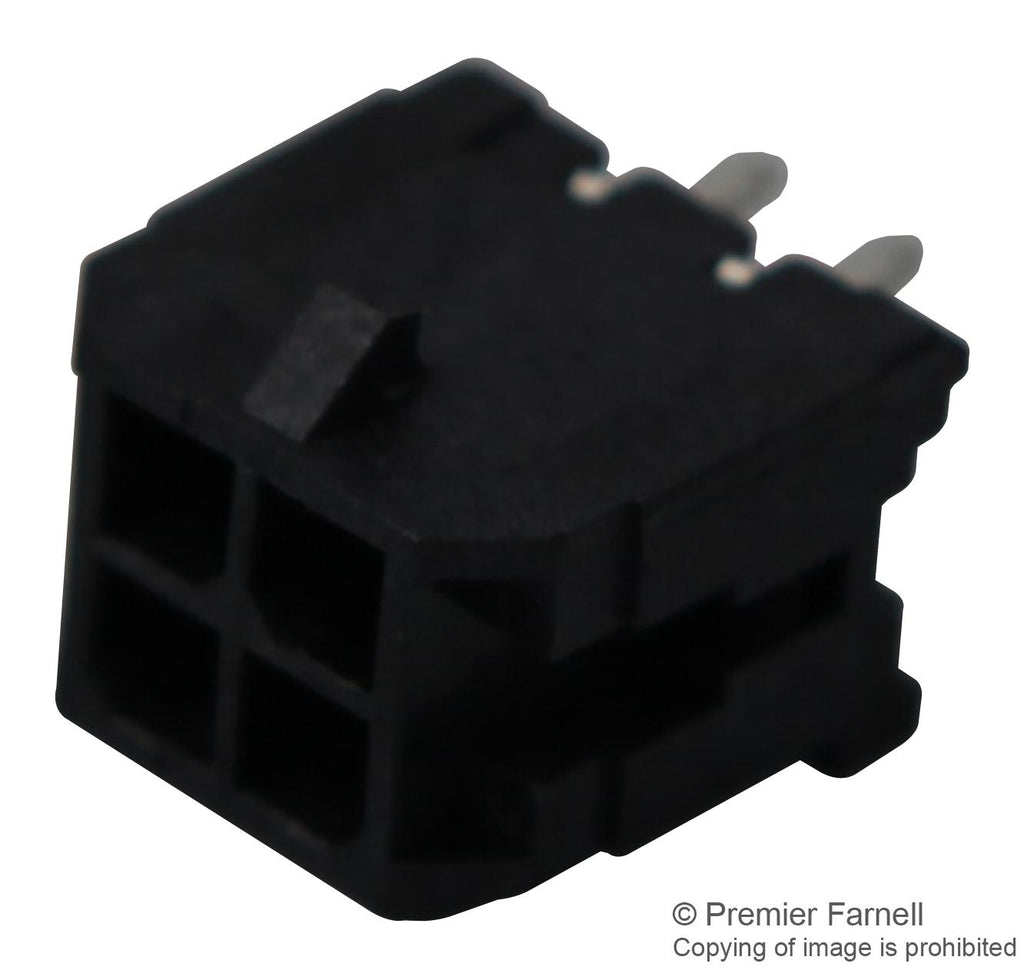

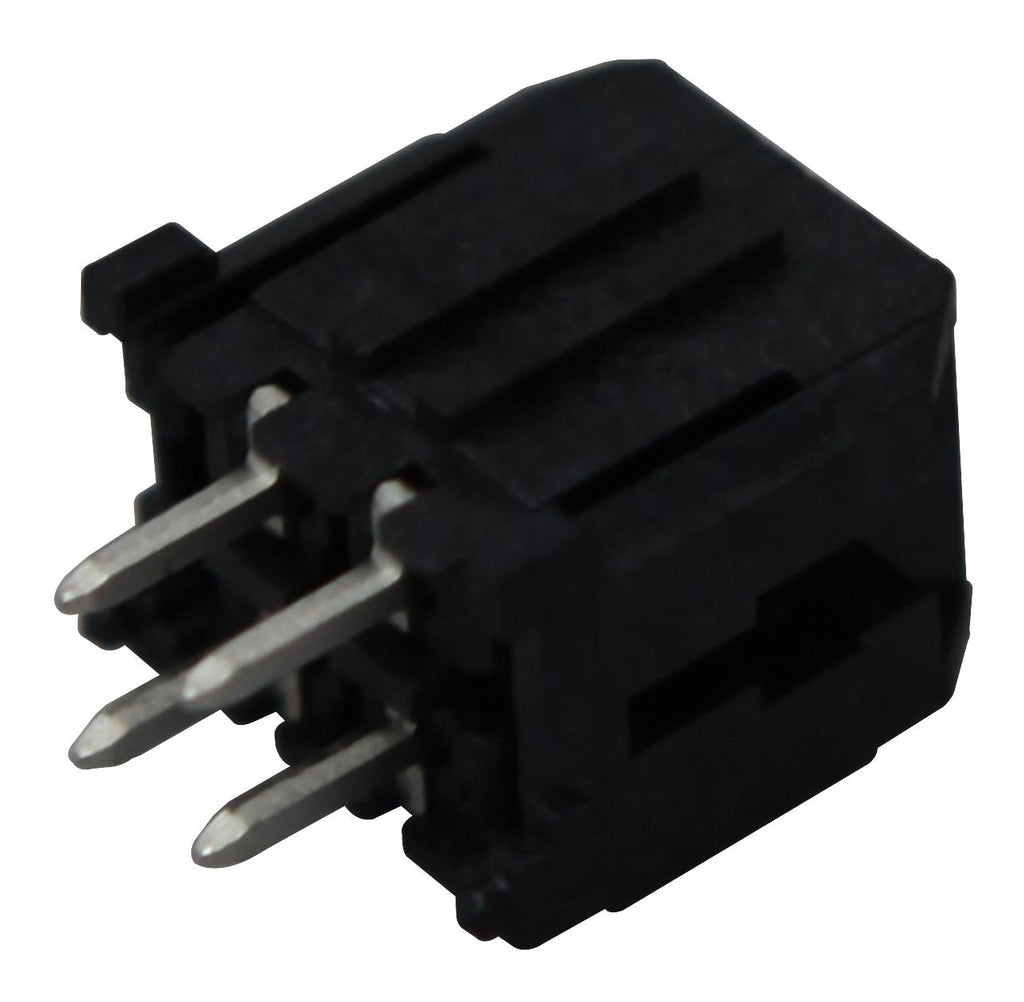

The 43045-0428 is a 4-circuit 2-row 3mm pitch Micro-Fit 3.0� vertical header with PCB polarizing peg, gold-plated brass contacts and through hole termination. This 43045 series PCB header is made of high temperature thermoplastic, mates with 43025 series Micro-Fit 3.0� receptacle housing, suitable for power and wire-to-board applications.
- Withstands high-temperature 265°C IR reflow processes
- Fully polarized housing prevents accidental mismating
- Positive latching prevents accidental disconnects
- Locking tang on terminal secures terminals in housings
- Black colour
- Glow-wire compliant
- UL94V-0 flammability rating
- Current rating per contact is 5A
- Voltage rating is 600V
- Operating temperature range from -40°C to +105°C
Alternative Energy, Automotive, Communications & Networking, Consumer Electronics, Medical
Other details
| Brand | MOLEX |
| Part Number | 43045-0428 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Drawing EN | |
| Product Change Notice EN | |
| CAD Multiple Formats EN | |
| Packaging / Drawing / Footprint EN | |
