Description

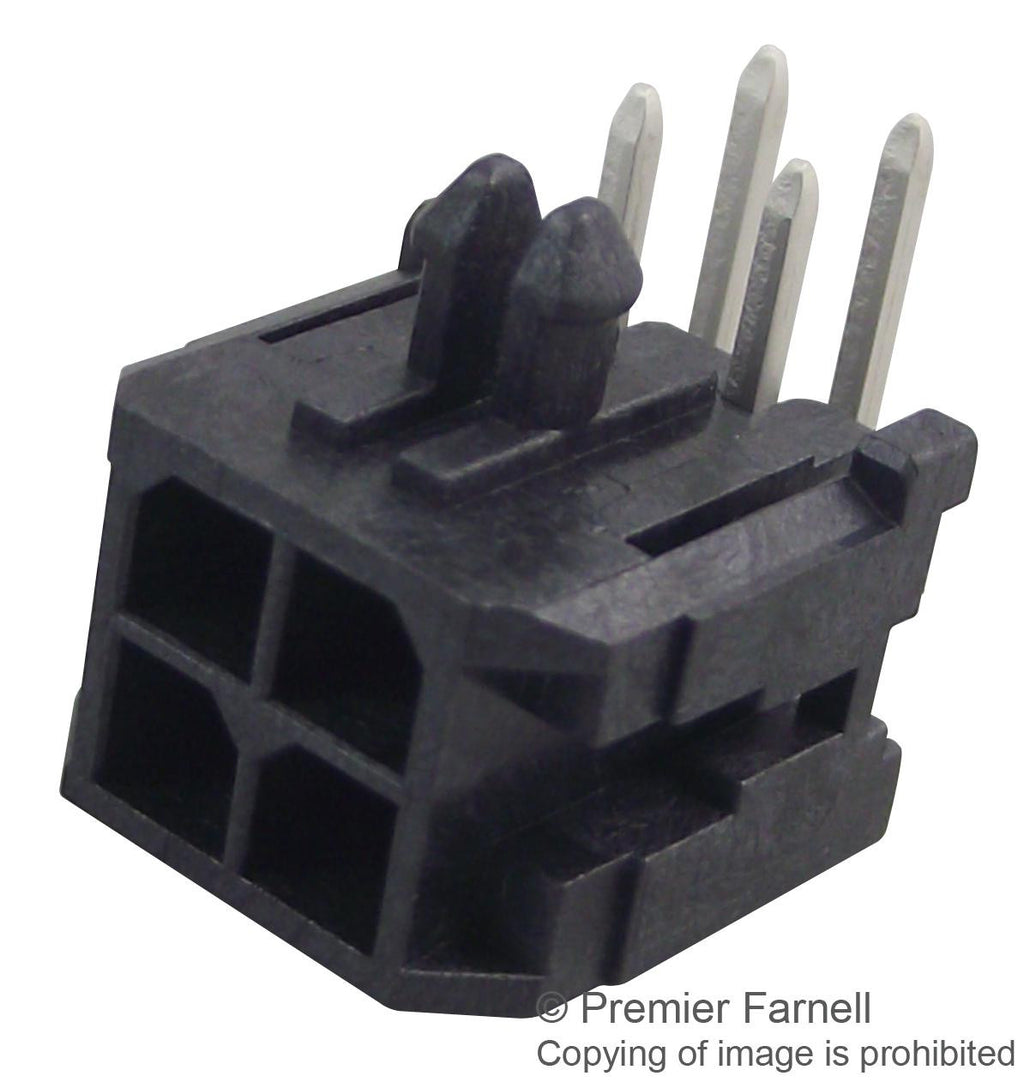

The 43045-0401 is a 4-circuit 2-row 3mm pitch Micro-Fit 3.0� Right Angle Header with snap-in plastic peg PCB lock, gold-plated brass contacts and through hole termination. This 43045 series PCB header is made of high temperature thermoplastic, mates with 43025 series Micro-Fit 3.0� receptacle housing, suitable for power and wire-to-board applications.
- Withstands high-temperature 265°C IR reflow processes
- Fully polarized housing - Prevents accidental mismating
- Positive latching - Prevents accidental disconnects
- Locking tang on terminal - Secures terminals in housings
- Black colour
- Glow-wire compliant
- UL94V-0 Flammability rating
- 5A Current rating per contact
- 600V Voltage rating
- -40 to 105°C Temperature range
Applications
Aerospace, Defence, Military, Alternative Energy, Consumer Electronics, Security, Communications & Networking, Medical, Power Management
Product details
| No. of Contacts | 4Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | Micro-Fit 3.0 43045 Series |
| Contact Material | Brass |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 3mm |
| No. of Rows | 2Rows |
Other details
| Brand | MOLEX |
| Part Number | 43045-0401 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
