Description

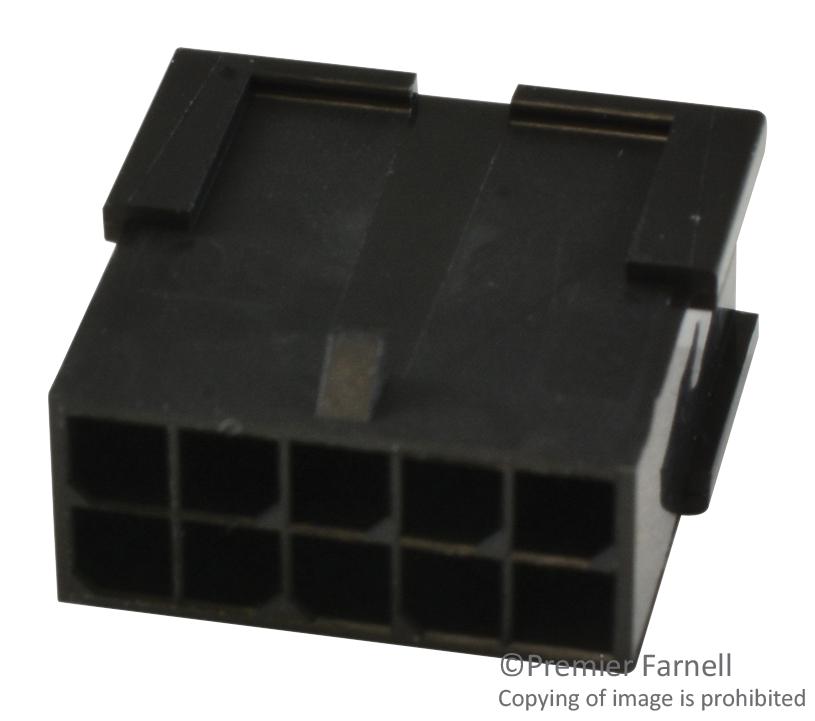

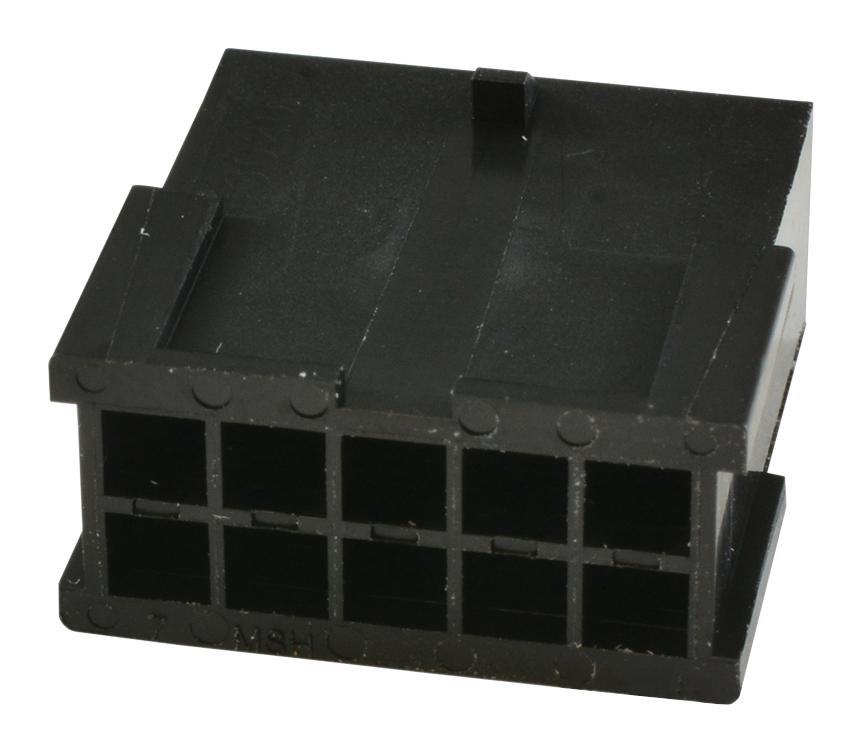

The 43020-1001 is a 10-way 2-row Micro-Fit 3.0� Male Plug housing made of polyester. It mates with 43025 Micro-Fit 3.0� receptacle housing. The crimp housing is suitable for power and wire-to-wire applications. This 43020 series plug housing can be used with 43031 Micro-Fit 3.0� male crimp terminals. The housings utilize positive-lock features to prevent accidental disconnects.
- Black colour
- Prevents accidental mismating
- UL94V-0 flammability rating
- Lock to mating part
- Polarized to mating part
- Maximum current per contact is 5A
Alternative Energy, Automotive, Communications & Networking, Consumer Electronics, Medical
Other details
| Brand | MOLEX |
| Part Number | 43020-1001 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Product Change Notice EN | |
| 3D Product Image EN | |
| Drawing EN | |
