Description

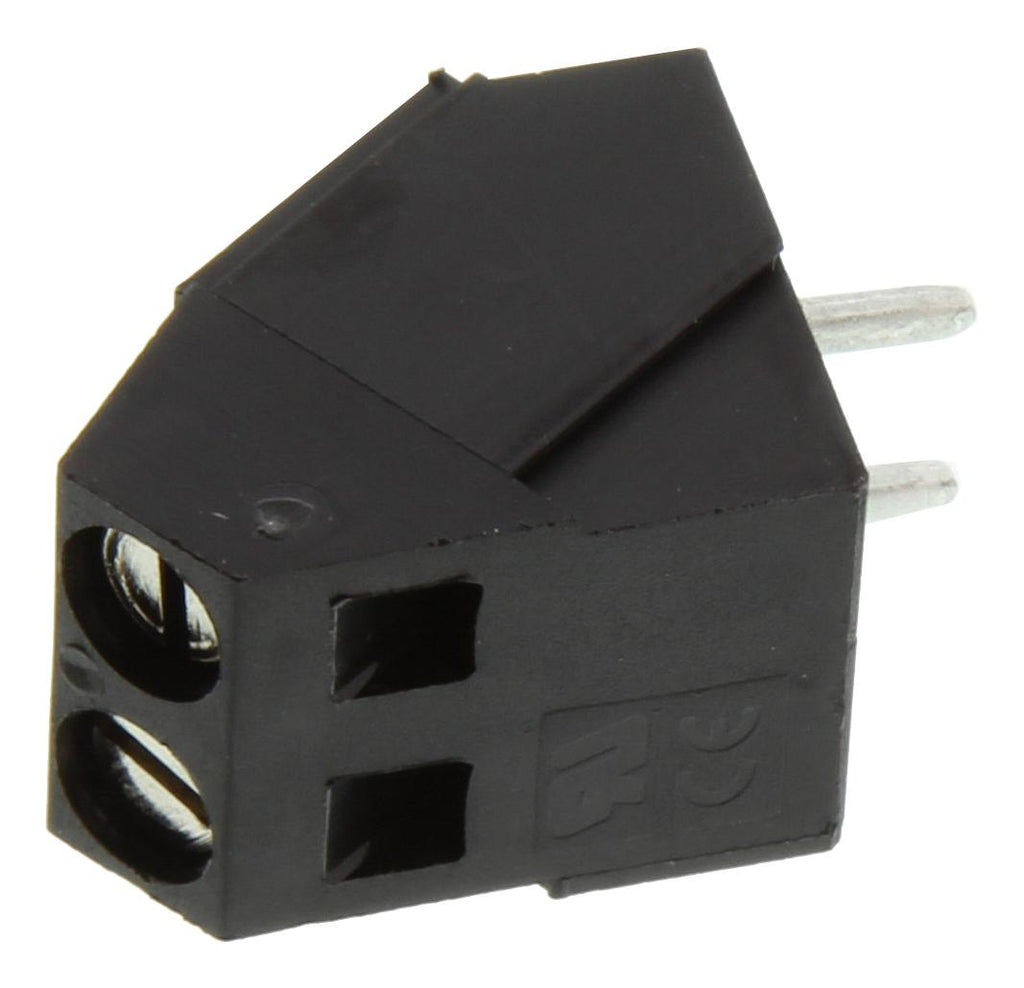

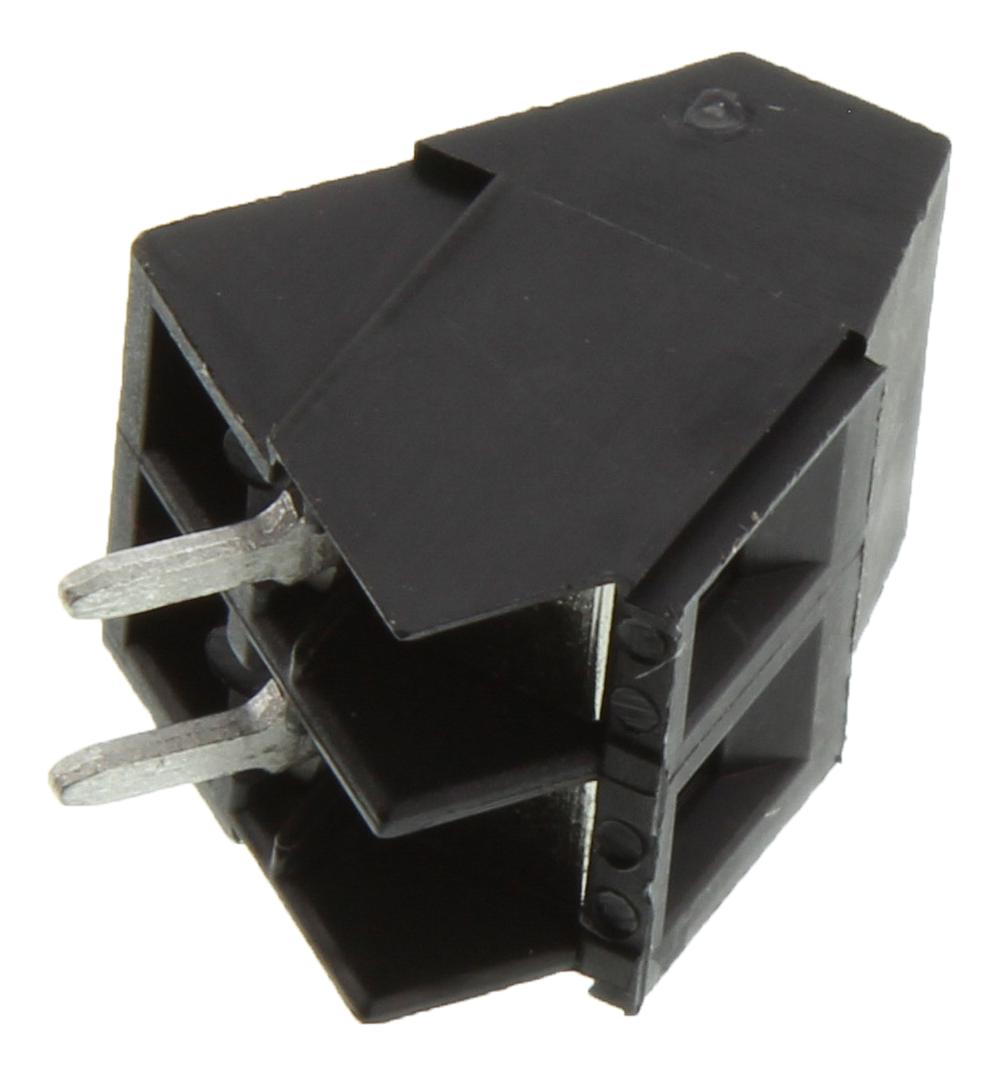

This is a 35 DEGREE 5.00MM 2 ASY 01J8008 product from MOLEX with the model number 39890-0402.
Product details
| Pitch Spacing | 5mm |
| No. of Positions | 2Ways |
| Wire Size AWG Min | 30AWG |
| Wire Size AWG Max | 12AWG |
| Conductor Area CSA | 2.5mm² |
| Wire Connection Method | Screw |
| Rated Current | 17.5A |
| Rated Voltage | 300V |
| Block Orientation | Through Hole 35° |
| Product Range | Eurostyle 39890 Series |
Other details
| Brand | MOLEX |
| Part Number | 39890-0402. |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
