Description

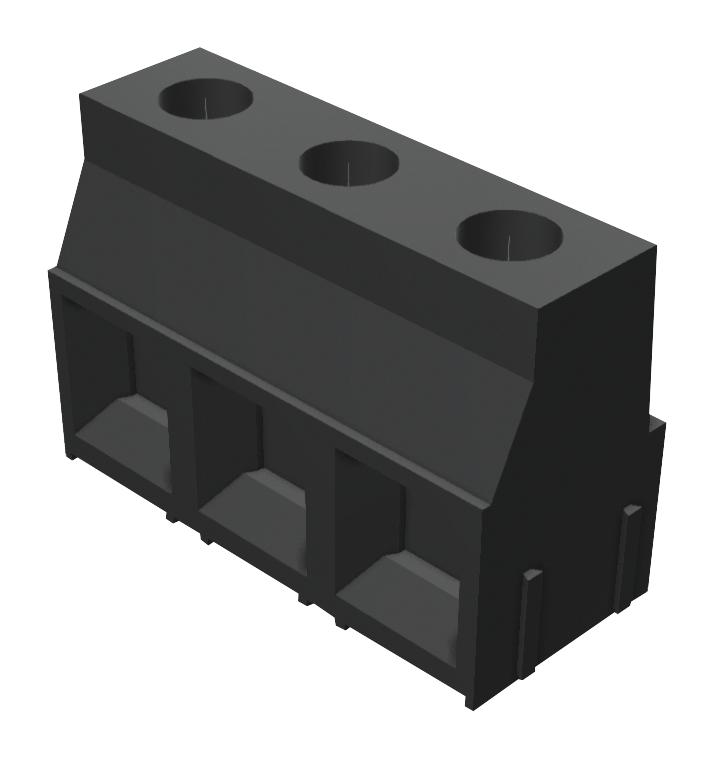

This is a Wire-To-Board Terminal Block, 9.53 mm, 3 Ways, 30 AWG, 10 AWG, 2.5 mm², Screw product from MOLEX with the model number 39390-0103
Product details
| Pitch Spacing | 9.53mm |
| No. of Positions | 3Ways |
| Wire Size AWG Min | 30AWG |
| Wire Size AWG Max | 10AWG |
| Conductor Area CSA | 2.5mm² |
| Wire Connection Method | Screw |
| Rated Current | 30A |
| Rated Voltage | 600V |
| Block Orientation | Through Hole Right Angle |
| Product Range | Eurostyle 39390 Series |
Other details
| Brand | MOLEX |
| Part Number | 39390-0103 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
