Description

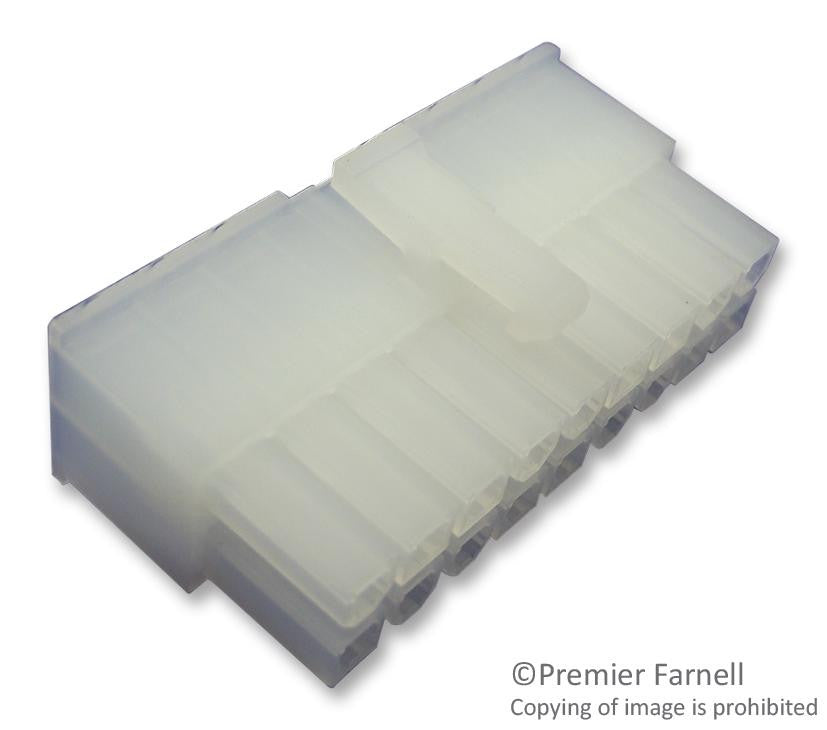

The 39-01-2205 is a 20-way 2-row Mini-Fit Jr.� Female Receptacle Housing made of nylon. It mates with 5559 dual row, 5566 vertical with pegs, 5566 vertical without pegs, 5569 right angle dual row with flanges, 5569 right angle dual row with pegs, 43810, 44068, 44281, 87427, 42404 and 42440 series products. The crimp housing is suitable for power, wire-to-board and wire-to-wire applications. This 5557 series receptacle housing can be used with 5556 Mini-Fit� female crimp terminals and 45750 Mini-Fit� plus HCS crimp terminal.
- Natural color
- UL94V-0 Flammability rating
- Polarized to mating part
- 13A Maximum current per contact
Applications
Power Management, Consumer Electronics, Communications & Networking, Industrial, Automation & Process Control
Product details
| Gender | Receptacle |
| No. of Positions | 20Ways |
| Product Range | Mini-Fit Jr. Series |
| For Use With | 5556, 45750 Series Socket Crimp Terminals |
| Pitch Spacing | 4.2mm |
Other details
| Brand | MOLEX |
| Part Number | 39-01-2205 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
