Description
Product Overview

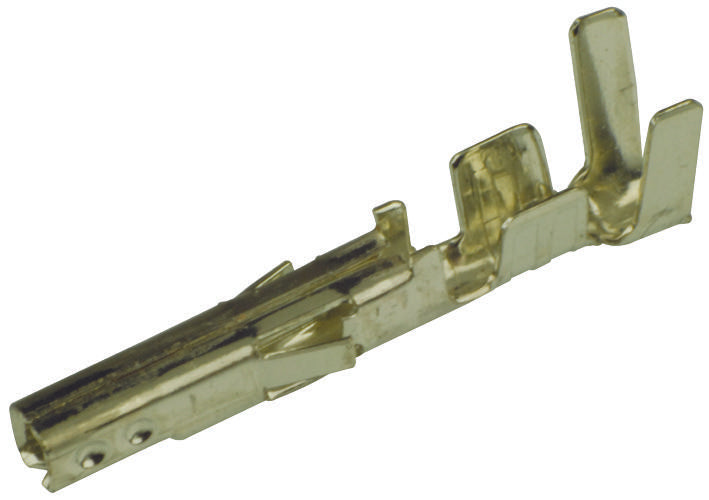

The 39-00-0217 is a Mini-Fit® female socket crimp terminal made of phosphor bronze with tin plated finish. This 5556 series female crimp terminal accepts 16AWG wire. The socket terminal mates with 5558 Mini-Fit® crimp male terminals, 5566 and 5569 dual row Mini-Fit Jr.� header. It can be used with 5557 Mini-Fit Jr.� receptacle housing, 30067 Mini-Fit® TPA, 42474 Mini-Fit® BMI panel mount and 5559 Mini-Fit Jr.� dual row plug housing. The terminal is suitable for power applications.
- Maximum current per contact is 9A
- Maximum voltage is 600V
- Maximum durability of 30 mating cycles
Applications
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Communications & Networking
Product details
Other details
| Brand | MOLEX |
| Part Number | 39-00-0217 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
