Description

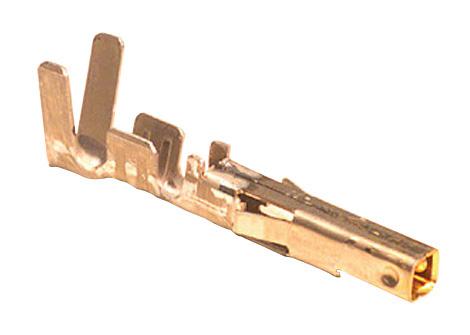

The 39-00-0185 from Molex is a Mini-Fit® female crimp terminal. It mates with 5558 Mini-Fit® crimp male terminals and 5566, 5569 Mini-Fit Jr.� dual row header. It is used with part(s) such as 5557 Mini-Fit Jr.� receptacle housing, 30067 Mini-Fit® TPA, 42474 Mini-Fit® BMI panel mount and 44516 Mini-Fit® BMI slide and lock panel mount.
- Gold (Au) over phosphor bronze contact, tin termination plating
- 16AWG wire size
- 0.130/g net weight
- Wire insulation diameter range from 1.80mm to 3.10mm
- Crimp or compression termination interface style
- 600V maximum voltage
- 9A maximum current per contact
- Maximum durability of 30 mating cycle
Automotive, Commercial Vehicle, Consumer Electronics, Portable Devices, Industrial, Industrial Automation, Medical, Communications & Networking
Other details
| Brand | MOLEX |
| Part Number | 39-00-0185 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
