Description

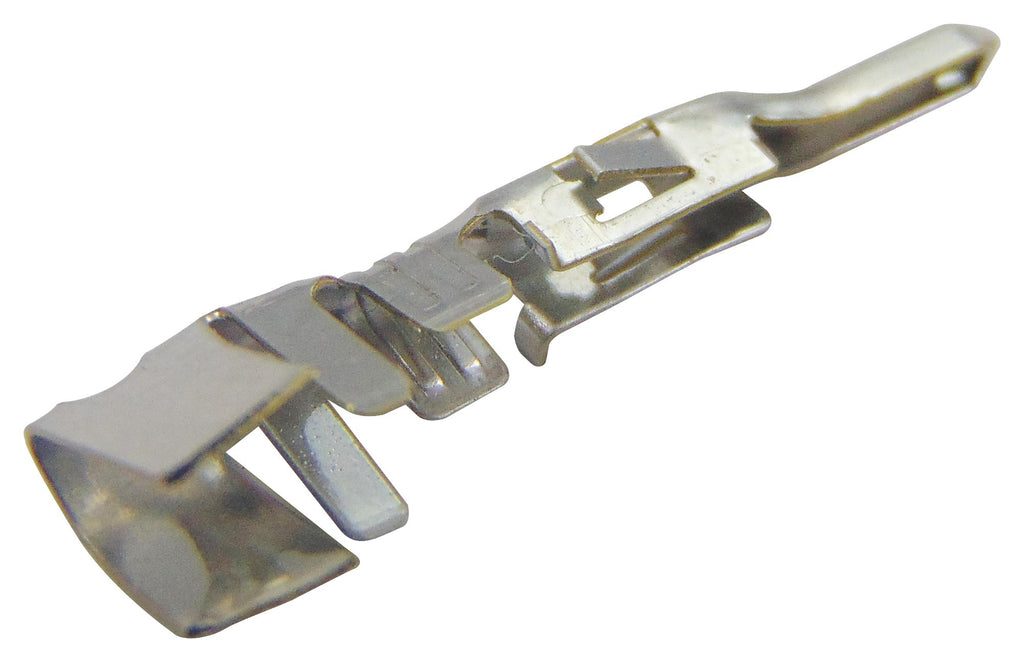

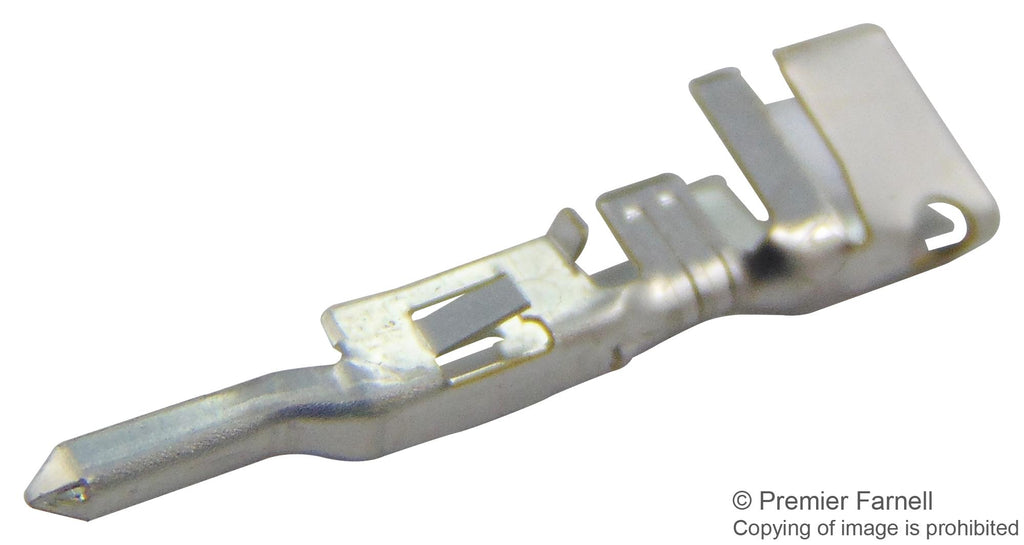

The 39-00-0081 from Molex is a Mini-Fit male crimp terminal made of brass metal with tin plating. It mates with 5556 Mini-Fit crimp terminal and used with 5559 Mini-Fit Jr. plug housing, 30068 Mini-Fit TPA plug housing, 42475 Mini-Fit BMI plug housing.
- Wire size of 16AWG
- Maximum wire insulation diameter range from 1.8mm to 3.1mm
- Crimp or compression termination interface style
- Maximum voltage is 600V
- Maximum current per contact is 9A
- Maximum durability of 30 mating cycles
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Communications & Networking
Other details
| Brand | MOLEX |
| Part Number | 39-00-0081 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| Drawing EN | |
