Description

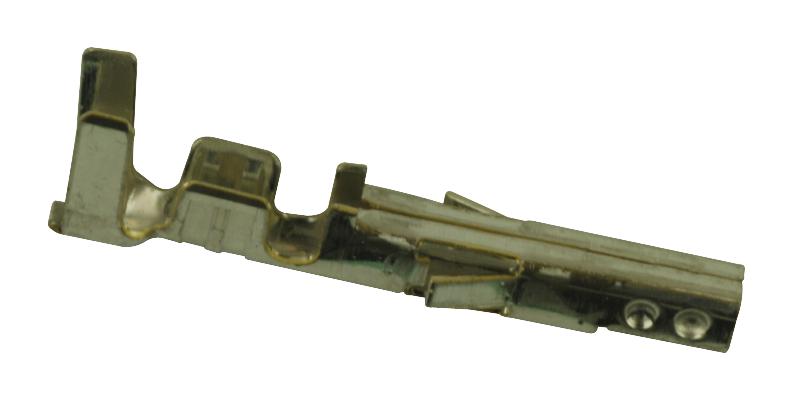

The 39-00-0059 from Molex is a 5556 series Mini-Fit® female crimp terminal. It mates with 5558 Mini-Fit® crimp male terminals and 5566, 5569 Mini-Fit Jr.� dual row header. It is used with part(s) such as 5557 Mini-Fit Jr.� receptacle housing, 30067 Mini-Fit® TPA, 42474 Mini-Fit® BMI panel mount.
- Tin (Sn) over phosphor bronze
- 18AWG, 20AWG, 22AWG, 24AWG wire size
- Wire insulation diameter range from 1.3mm to 3.10mm
- Crimp or compression termination interface style
- Maximum voltage is 600V
- Maximum current per contact is 9A
- Maximum durability of 30 mating cycle
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Communications & Networking
Other details
| Brand | MOLEX |
| Part Number | 39-00-0059 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 21.3 |
| 3-5 | ₹ 21.08 |
| 5-10 | ₹ 20.64 |
| 10+ | ₹ 20.21 |
Bulk discount will be automatically applied during checkout based on quantity.
