Description

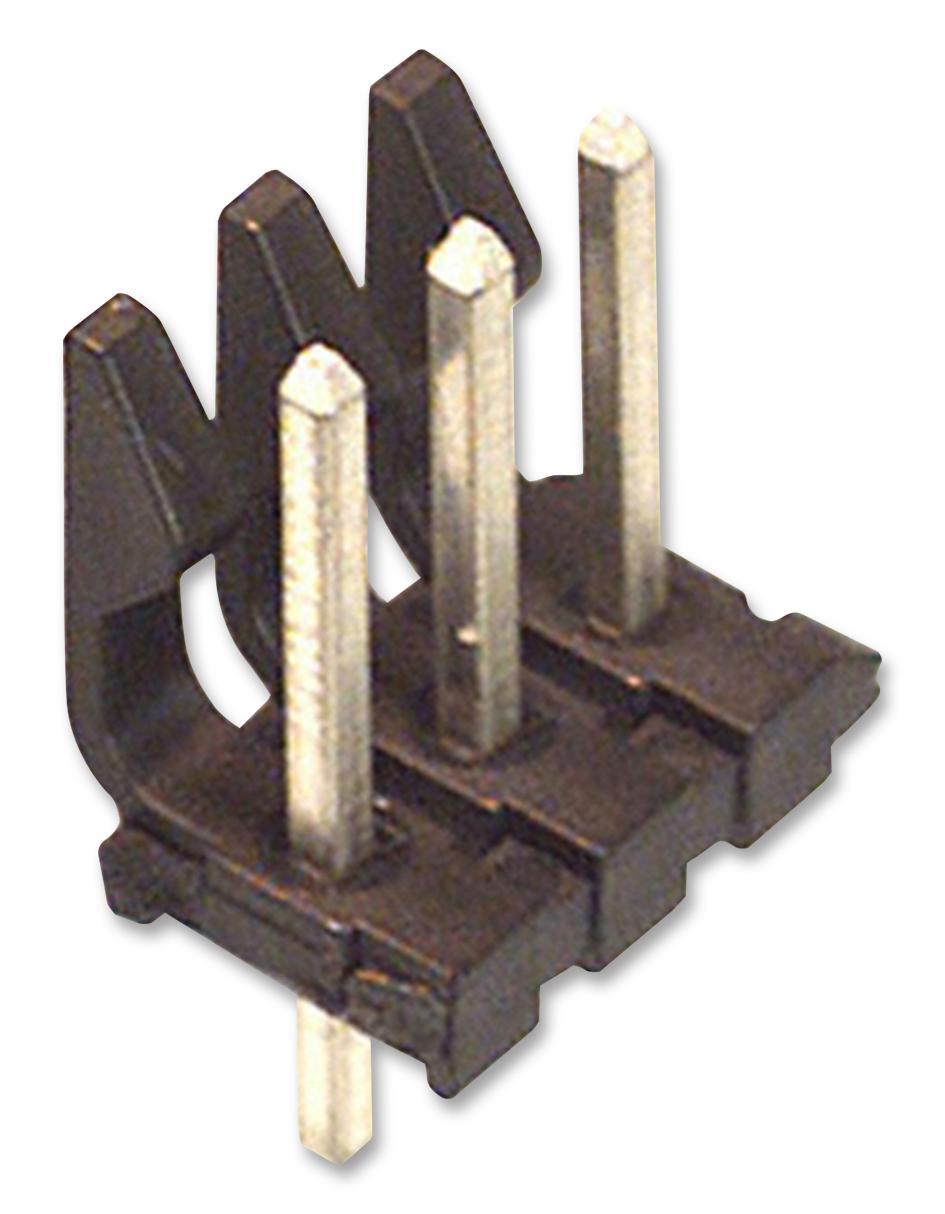

The 26-48-1035 is a 3-way 1-row vertical KK® 396 Breakaway header with tin-plated brass contacts. It mates with 2139, 41695, 6442 and 3069 series KK® crimp housing, 2145 and 41815 series PCB connectors. The 41671 series PCB header comes with black polyester resin, square pin and friction lock. This header is ideal for power and wire-to-board applications.
- Friction lock - Ensure secure mating and prevent accidental disengagement
- Lock to mating part
- Polarized to mating part
- Partial shrouded
- UL94V-0 flammability rating
- Maximum durability of 25 mating cycles
- Maximum current per contact is 7A
- Maximum voltage is 250V
Automotive, Communications & Networking, Consumer Electronics, Data , Computing, Industrial, Medical, Robotics
Other details
| Brand | MOLEX |
| Part Number | 26-48-1035 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Drawing EN | |
| Product Change Notice EN | |
| CAD Multiple Formats EN | |
