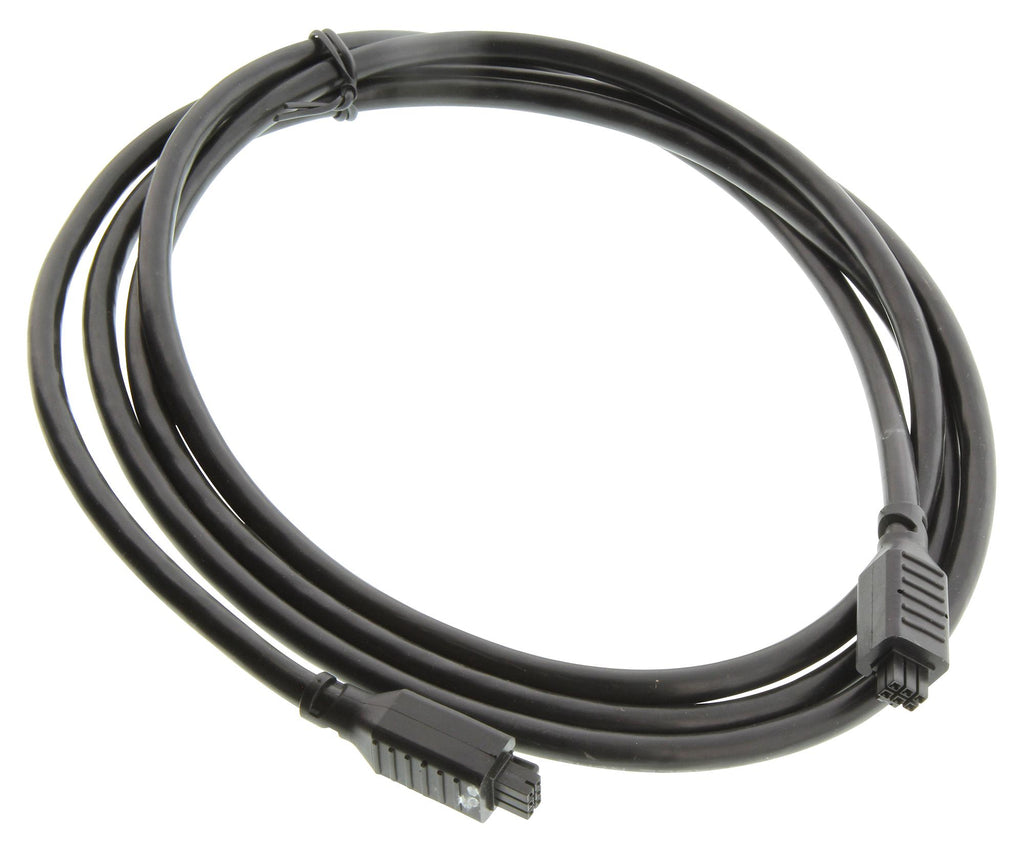

Molex's Off-The-Shelf (OTS) Nano-Fit Overmolded Cable Assemblies combine rugged signal connection with a user friendly interface. These connectors with strain relief provide a ruggedized general market connector that is safe and convenient for consumer use while reducing mechanical stress on wires and terminals. The positive latching on housings ensure secure retention and delivers and audible click to provide feedback that the connector is fully mated. They also benefit from fully polarized housings which will prevent accidental mis-mating.
- This Nano-Fit Cable Assembly is fitted with one of the smallest fully-isolated headers on both sides available in the market
- Max Voltage: 250V
- Max Current: 6A
- Contact material: High-Conductivity Copper
Applications
Communications & Networking, Computers & Computer Peripherals, Consumer Electronics, Industrial Automation, Lighting, Power Management, Power Supplies
Product details
| Connector to Connector |
Nano-Fit Receptacle to Nano-Fit Receptacle |
| No. of Positions |
6Ways |
| Connector Pitch |
2.5mm |
| No. of Rows |
2 Row |
| Cable Length - Metric |
2m |
| Cable Length - Imperial |
6.6ft |
| Product Range |
Nano-Fit OTS 245130 Series |
| Wire Gauge |
20AWG |
| Jacket Colour |
Black |
Other details
| Brand |
MOLEX |
| Part Number |
245130-0620 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Enhanced Product Overview EN |
|
| Drawing EN |
|
