Description

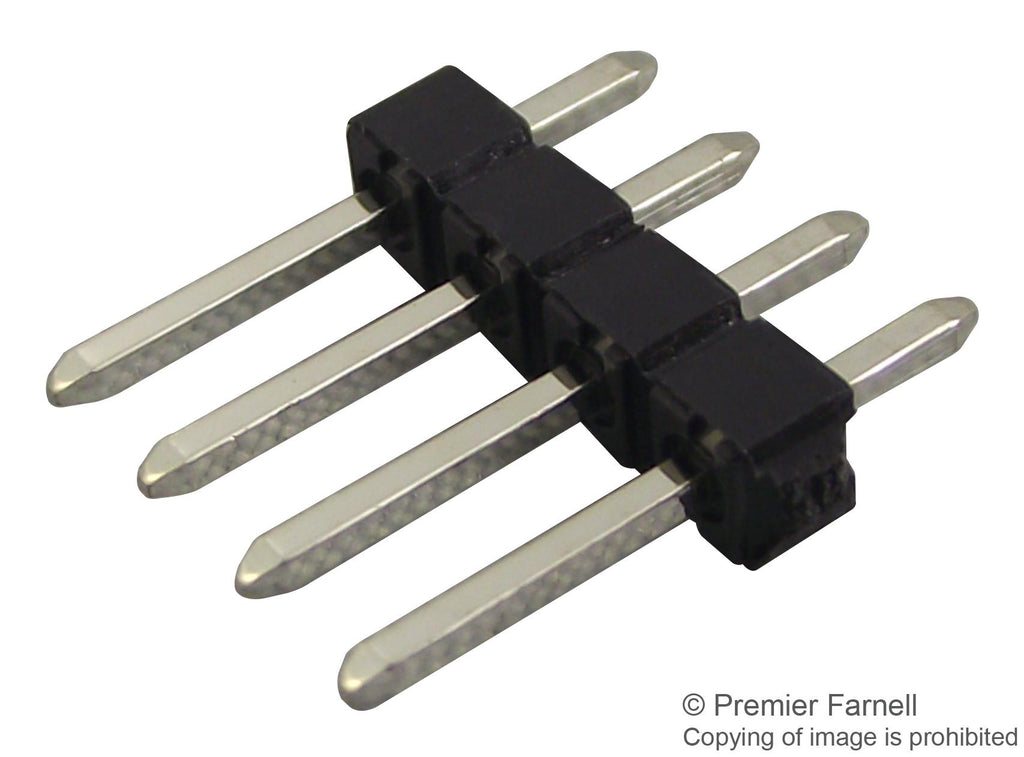

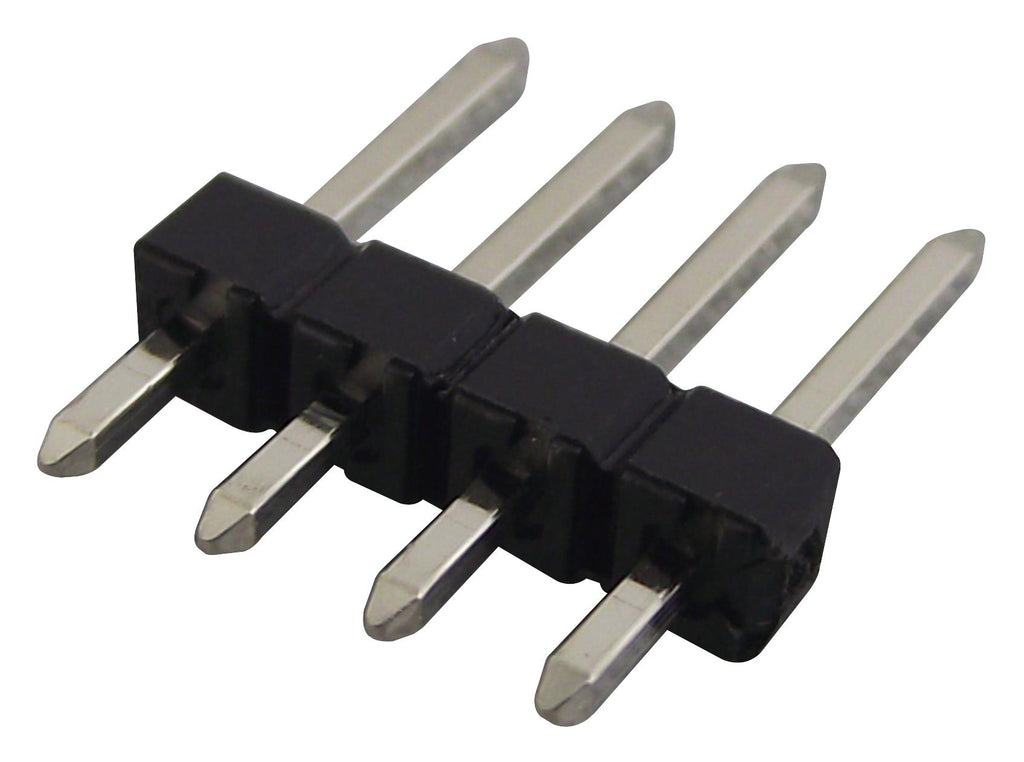

The 22-28-4040 is a 4-way 1-row KK® 254 vertical breakaway header with tin-plated (Sn) brass contacts, 2.54mm pitch, 6.09mm mating pin length, through hole and black high temperature thermoplastic housing. This vertical Breakaway header is suitable for board-to-board, signal and wire-to-board. Mates with 2695, 6471, 7880 KK® crimp housing and 4455 KK® PC board connector.
- UL94V-0 flammability rating
- Surface mount compatible (SMC)
- Maximum current per contact is 4A
- Maximum voltage is 250V
Automotive, Communications & Networking, Consumer Electronics, Medical
Other details
| Brand | MOLEX |
| Part Number | 22-28-4040 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| 3D Product Image EN | |
| Drawing EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
