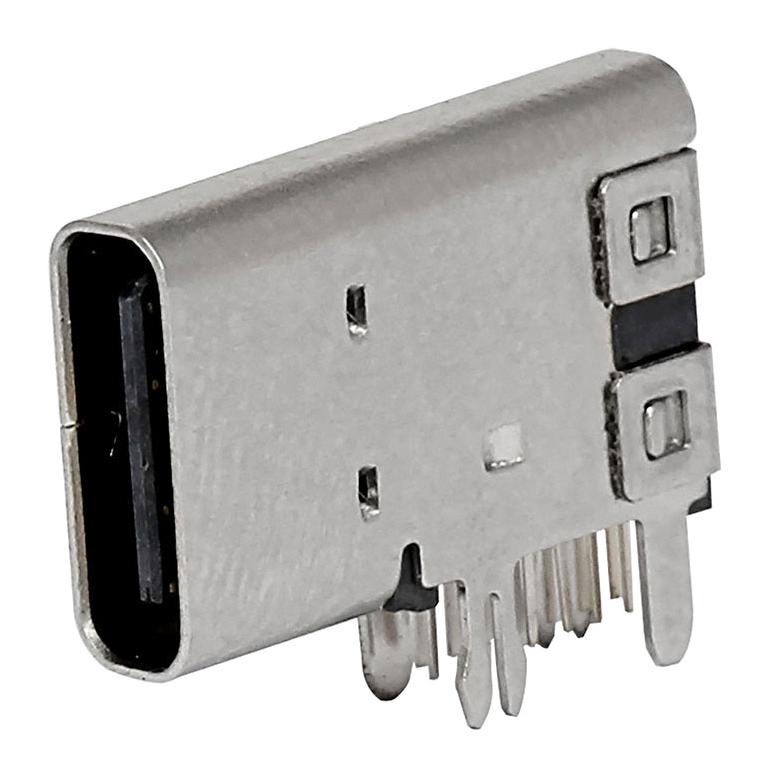

216989 series through hole Universal Serial Bus (USB) Type C shielded I/O receptacles are used in consumer, aviation, medical, industrial, commercial, automotive and connected home applications.
- Standard design, upright, dual row USB 2.0 connector
- 5A maximum current, 480Mbps data rate, 20V/5.0A power, 14 circuits
- Through-hole soldering design
- Suitable for both reflow and wave solder processes
- Enables re-work in case of soldering fail and easy testing with an improved yield rate
- Durability (min) of 10,000 cycles
- Voltage (maximum) of 30V (DC/AC)
- High-temperature nylon housing
- Copper alloy contact
- Operating temperature range from -40 to +85°C
Product details
| USB Connector Type:
USB Type C
|
| USB Standard:
USB 2.0
|
| Gender:
Receptacle
(View Associated Connectors)
|
| No. of Positions:
14Ways
|
| Connector Mounting:
Through Hole Mount
|
| Orientation:
Right Angle
|
| Contact Material:
Copper Alloy
|
| Contact Plating:
Gold Flash Plated Contacts
|
| Product Range:
216989
|
Other details
| Brand |
MOLEX |
| Part Number |
216989-0001 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
