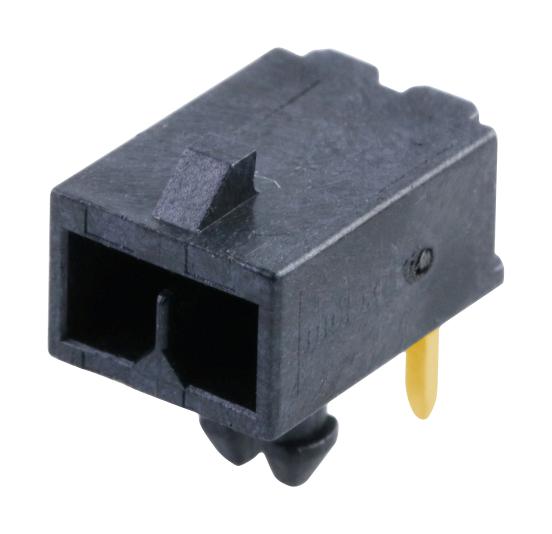

Molex 215760-2002 215760-2002 Pin Header Power Wire-to-Board 3 mm 1 Rows 2 Contacts Through Hole Right Angle New

• 215760 series black colour 3mm pitch, single row Micro-Fit+ right-angle header
• 0.38µm gold (Au) plating
• UL 94V-0, glow-wire capable
• Keying to mating part, lock to mating part
• High copper alloy metal material
• Liquid crystal polymer resin material
• Polarized to mating, polarized to PCB, shrouded
• Through hole termination interface style
• Operating temperature range from -40° to +105°C
• 12.5A maximum current per contact, 600VAC (RMS)/DC voltage maximum

Other details

Brand	MOLEX
Part Number	215760-2002
Quantity	Each
Drawing EN
