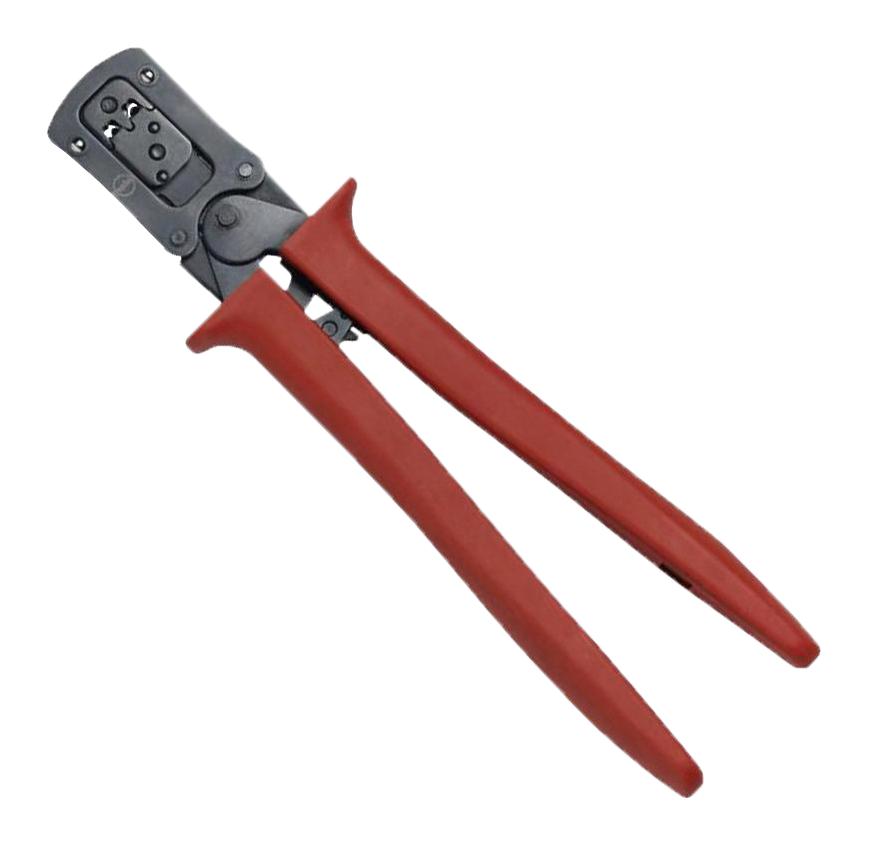

213309-6800 is a hand crimp tool for DuraClik robust 2mm pitch wire-to-board receptacle crimp terminals (0.30mm² and 0.50mm² AVSS wire). Modular crimp head is removable and can be used in the electric crimp machine (order number 63816-1900), accompanied by battery powered crimp adapter (order number 63816-1950). Can also be used in the battery powered tool order number 63816-0270 (110 V) or 63816-0280 (220 V), accompanied by battery powered crimp adapter (order number 63816-1950).
- A full cycle ratcheting hand tool ensures complete crimps
- Ergonomically designed soft handles
- Precisely designed crimping profiles with simple contact positioning
- Easy handling due to outstanding force ratio
- IPC/WHMA-A-620 Class 2 compliant
Footnotes Never install tooling or service this tool while it is plugged into any power source. Disconnect the power by unplugging, or turn off the actuator from its power source. Warnings Repetitive use of this tool should be avoided.
Other details
| Brand |
MOLEX |
| Part Number |
213309-6800 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
