L1NK connector system is a wire-to-board system that delivers up to 11.0A of current through 3mm pitch and offers superior design options for flexibility and efficient assembly. Typical applications include consumer - general market, telecommunications/networking, medical, automotive and industrial.

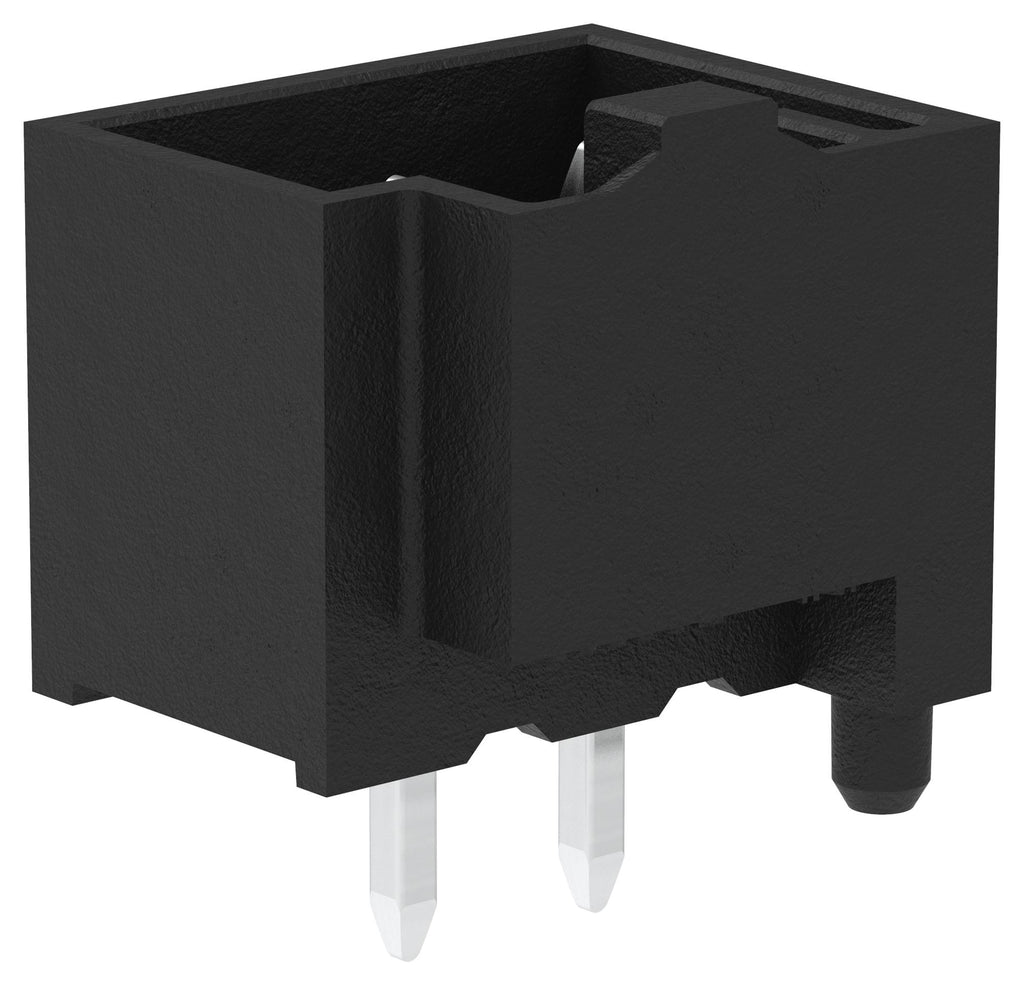

- 209208 series L1NK 300 header
- Partially shrouded wall provides protection of the pins within
- Crush peg provides stability of connector onto PCB
- Maximum voltage of 250V
- Contact resistance of 10milliohms
- Durability of 25 cycles (minimum)
Other details
| Brand |
MOLEX |
| Part Number |
209208-0002 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
| Product Change Notice EN |
|
