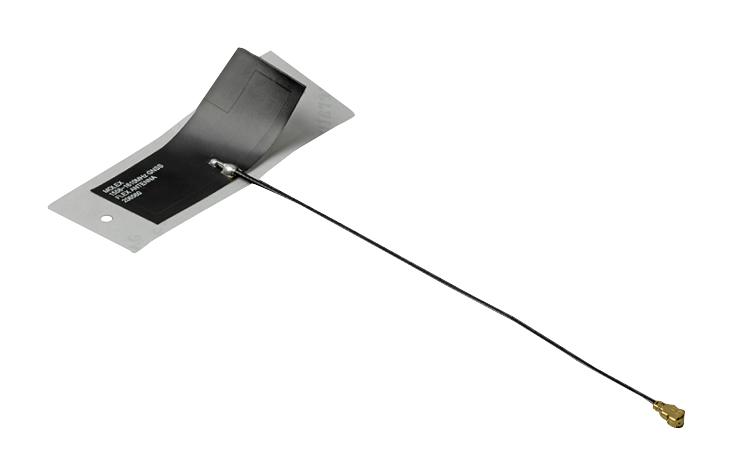

- 1558MHz to 1610MHz GNSS flexible antenna
- Suitable for wide range of navigation and tracking applications
- 100mm cable with U.FL connector
- Omnidirectional radiation
- Adhesive mounting
- 40.40mm x 15.40mm x 0.10mm(L x W x H) size
Applications
Wireless
Product details
| Antenna Type |
PCB |
| Frequency Min |
1.599GHz |
| Frequency Max |
1.605GHz |
| Antenna Mounting |
Adhesive |
| Gain |
1.37dBi |
| VSWR |
- |
| Input Power |
2W |
| Input Impedance |
50ohm |
| Antenna Polarisation |
Linear |
| Product Range |
206560 Series |
Other details
| Brand |
MOLEX |
| Part Number |
206560-0100 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
| Enhanced Product Overview EN |
|
