Description

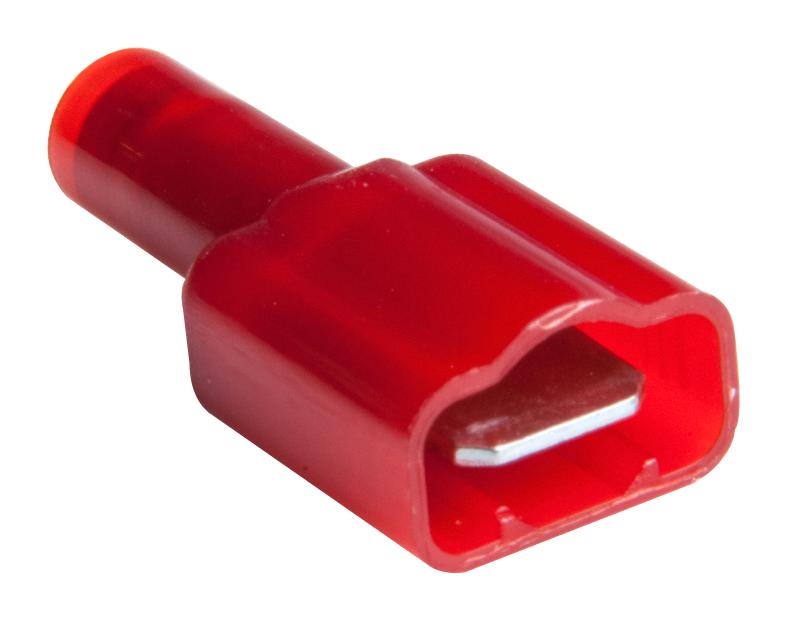

This is a Quick Disconnect Terminal, Avikrimp 19001 Series, Male Quick Disconnect, 6.35mm x 0.81mm product from MOLEX with the model number 19001-0001
Product details
| Product Range | Avikrimp 19001 Series |
| Terminal Type | Male Quick Disconnect |
| Tab Size - Metric | 6.35mm x 0.81mm |
| Tab Size - Imperial | 0.25" x 0.032" |
| Wire Size AWG Min | 22AWG |
| Wire Size AWG Max | 18AWG |
| Insulator Colour | Red |
| Conductor Area CSA | 0.96mm² |
| Insulator Material | Nylon 6.6 (Polyamide 6.6) |
| Terminal Material | Brass |
Other details
| Brand | MOLEX |
| Part Number | 19001-0001 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Product Change Notice EN | |
| Drawing EN | |
| 3D Product Image EN | |
