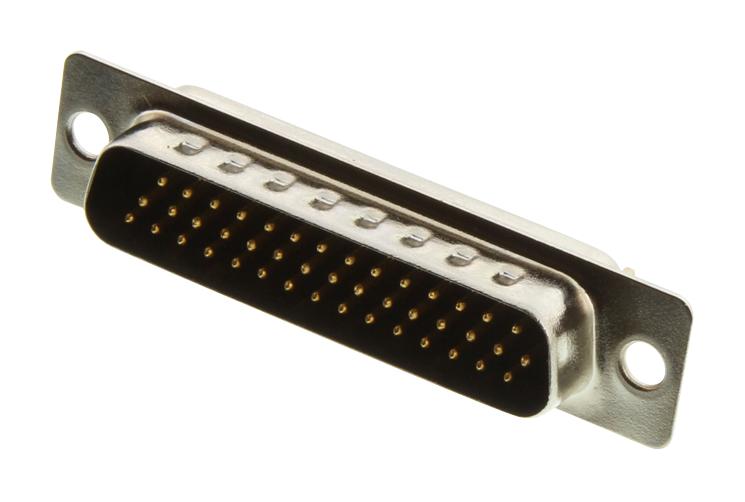

173113-0062 is a 173113 series, shielded FCT high-density D-Sub male connector. Mates with FCT high-density D-Sub, Size 3, 44 position, socket.
- 3 number of row, 44 circuits (loaded) and 44 circuits (maximum)
- 50 mating cycles max durability
- Copper alloy material contact and steel shell material
- 3A maximum current per contact
- Straight orientation and solder cup termination style
- Gold over nickel contact plating and nickel shell plating
- Polarized to mating part
- Black PBT resin
- IP20 waterproof / dustproof type
- Operating temperature range from -55 to +105°C
Product details
| D Sub Connector Type:
High Density
|
| Gender:
Plug
(View Associated Connectors)
|
| Product Range:
173113
|
| No. of Contacts:
44Contacts
|
| D Sub Shell Size:
DB
|
| Contact Termination Type:
Solder
|
| Connector Mounting:
Cable Mount, Panel Mount
|
| Contact Material:
Copper Alloy
|
| Contact Plating:
Gold Plated Contacts
|
| Connector Body Material:
Steel Body
|
Other details
| Brand |
MOLEX |
| Part Number |
173113-0062 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
