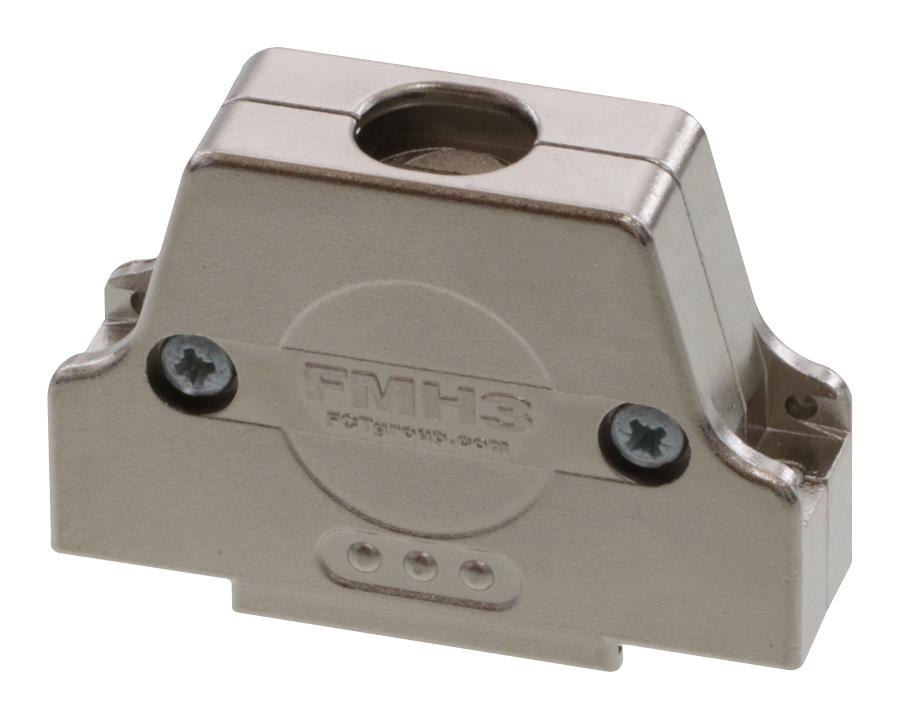

173111-0088 is a FCT plastic backshell with large inner chamber for use with size 3 D-sub connector.
- UL recognized/listed under file no. E197631
- Large inner chamber, suitable for D-Sub connectors with special contacts
- Straight cable outlet
- with rubber bushing
- Easy assembly with catch spring system and premounted locking screws
- Zinc die-cast material
- Operating temperature range from -35° to +100°C
- Cable diameter range from 9.0 to 11.0mm
Product details
| Product Range:
173111 Series
|
| D Sub Shell Size:
DB
|
| Cable Exit Angle:
180°
|
| Connector Body Material:
Zinc Body
|
Other details
| Brand |
MOLEX |
| Part Number |
173111-0088 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
