Description
Product Overview

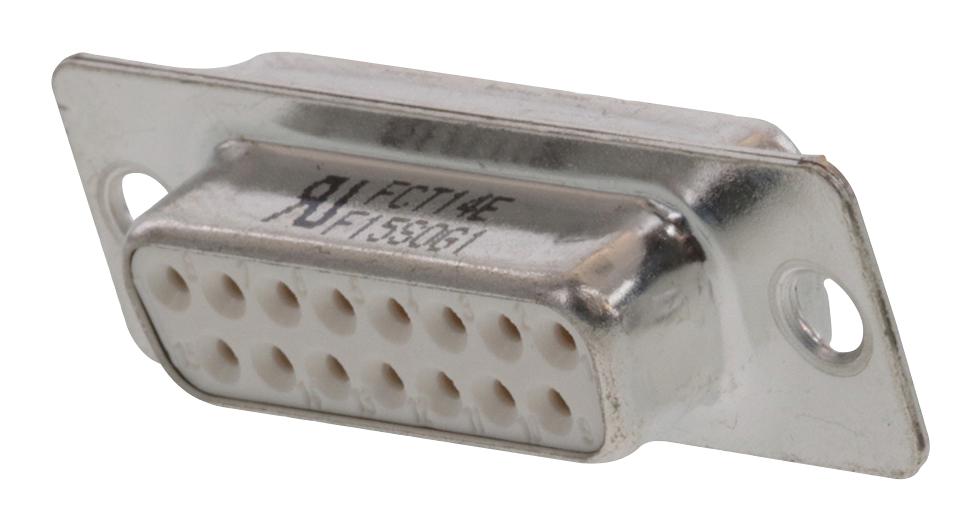

173109-0069 is a 173109 series, shielded, FCT standard-density, female D-Sub connector. Mates with FCT standard-density D-Sub, Size 2, 15 position, plug.
- 7.5A maximum current per contact
- 2 row, 15 circuits (maximum) and 15 circuits (loaded)
- Durability of 500 mating cycles max
- Copper alloy contact, gold over nickel contact plating
- White PBT resin
- Straight orientation and through hole termination style
- Steel shell and tin shell plating
- IP20 waterproof / dustproof
- Operating temperature range from -55° to +125°C
Product details
Other details
| Brand | MOLEX |
| Part Number | 173109-0069 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 884.25 |
| 3-5 | ₹ 875.23 |
| 5-10 | ₹ 857.19 |
| 10+ | ₹ 839.14 |
Bulk discount will be automatically applied during checkout based on quantity.
