Description

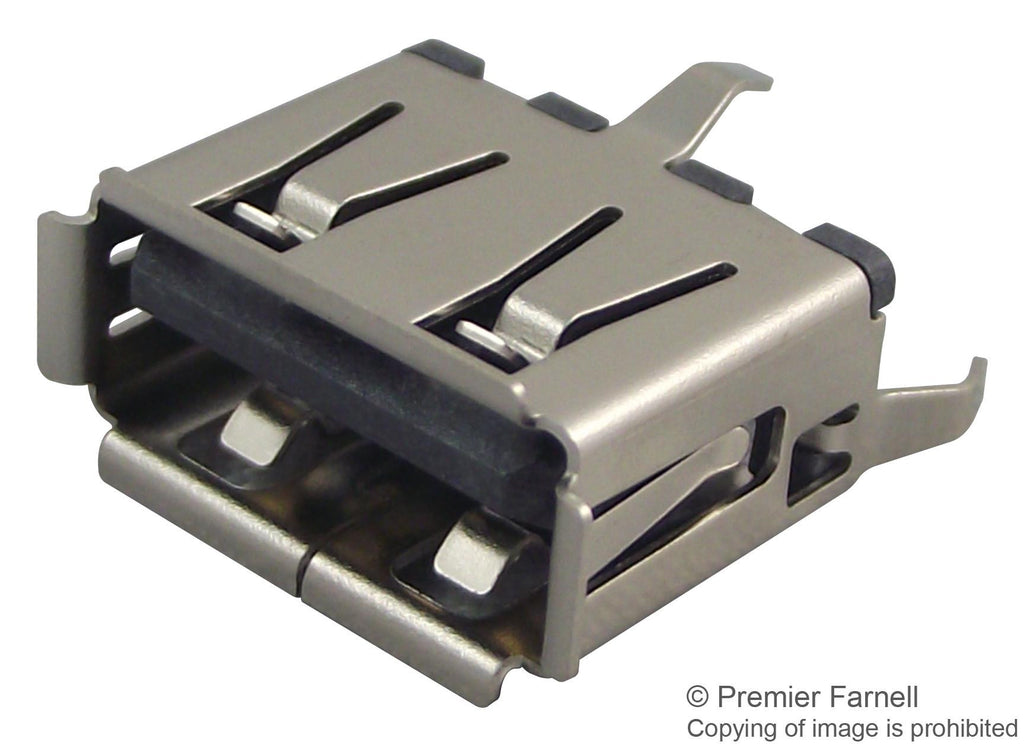

The 105057-0001 is a 4-circuit shielded vertical Universal Serial Bus (USB) I/O type-A Receptacle, with gold-plated copper alloy contacts, 3 bevelled metal pins and through hole termination. This 105057 series connector has 2.80mm solder tail length, mates with USB type-A cable, suitable for wire-to-board application. Industry standard USB connector provides connection for power and data exchange without the need for a host PC across a variety of industries. The Universal Serial Bus was developed in 1996 to integrate a variety of existing PC I/O ports into a single interface with hot-plugging, automatic configuration capabilities and increased bandwidth to enhance serial I/O throughput for a wide range of peripherals. USB products connect a variety of different peripherals to this common interface standard.
- Metal shielding on all sides - Superior shielding against RFI and EMI
- Grounding fingers - Ground mating halves
- Beveled metal pins - Provides ground to PCB and strong board retention
- Small footprint - Ideal for space-constraint applications
- Detent lock - Securing mating retention
- Black colour
- 1.5A Current rating per contact
- 30V Voltage rating
- -40 to 85�C Temperature range
Applications
Automotive, Consumer Electronics, Medical, Portable Devices, Communications & Networking, Computers & Computer Peripherals
Product details
| No. of Positions | 4Ways |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Orientation | Vertical |
| Connector Mounting | Through Hole Mount |
| USB Standard | USB 2.0 |
| USB Connector Type | USB Type A |
| Product Range | - |
| Gender | Receptacle |
Other details
| Brand | MOLEX |
| Part Number | 105057-0001 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
