Molex 02-09-1117 02-09-1117 Contact Standard .093" 1381 Socket Crimp 18 AWG Tin Plated Contacts

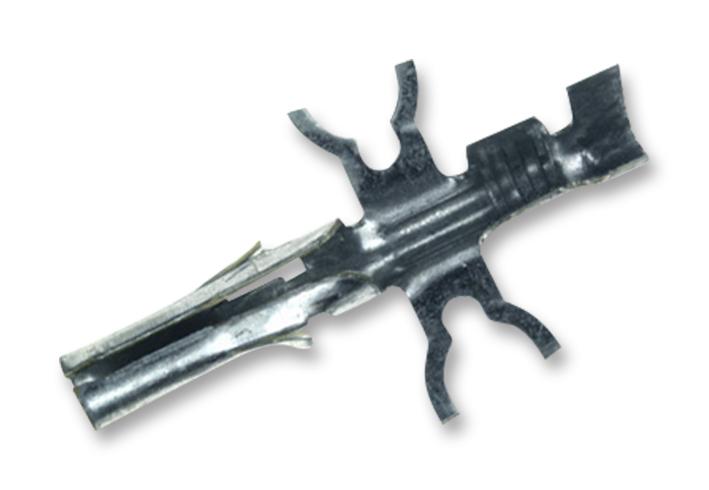

The 02-09-1117 is a 0.093-inch standard female socket crimp terminal made of brass with tin plated finish. This 1381 series female crimp terminal accepts 22 to 18AWG wire and ideal for applications up to 17A. The terminal can be used with 1261, 1619, 1545, 1396, 1490 plug or receptacle housing, 2629 plug or receptacle crimp housings and 1292 plug or receptacle. Molex's 2.36mm diameter terminals are used in the 5.03mm pitch standard 0.093-inch and 6.71mm pitch 3191 products. The terminal is suitable for power applications.

• High-current terminal
• Maximum durability of 25 mating cycles

Applications

Communications & Networking, Consumer Electronics

Other details

Brand	MOLEX
Part Number	02-09-1117
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Drawing EN
