Description

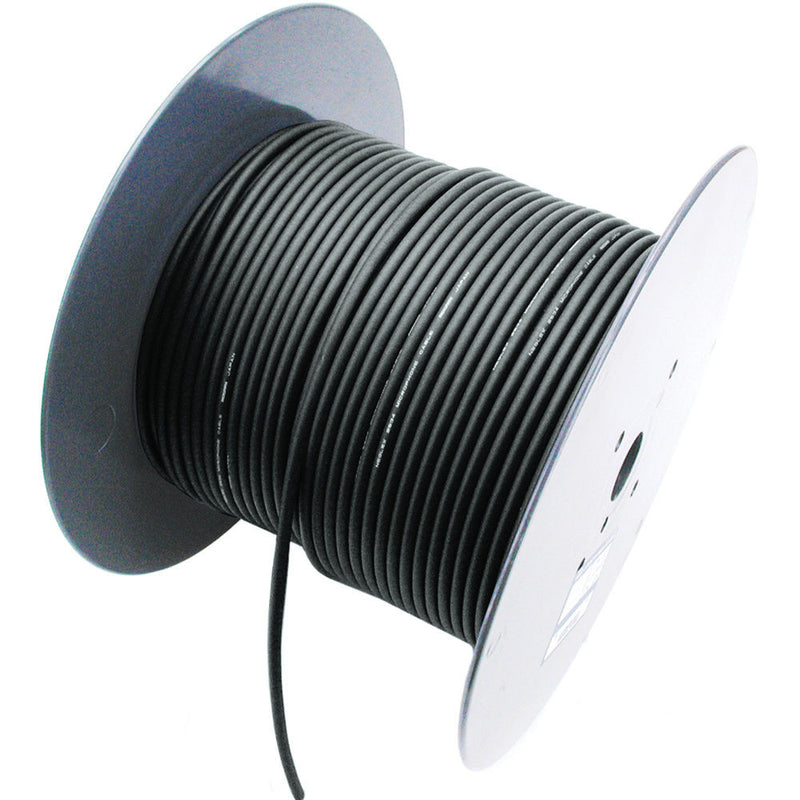

The Mogami W3163 AES/EBU Digital Audio Multicore Cable (500'/Black) is flexible and its compact design makes this multicore 110 ? AES/EBU digital audio snake cable easy for wiring, installation, and handling. Because of employed cellular PP (polypropylene) insulation material, regardless of its compact overall diameter, a larger conductor size is used, which results in lower attenuation.
- Easy cable core identification system, such as numbered cable core
- Easy wiring assisted by the same conductor size drain wire
- Flexible and good low temperature characteristic
In the Box
Mogami W3163 AES/EBU Digital Audio Multicore Cable (500'/Black)
- Lifetime Warranty
| Length | 500' (152.4 m) |
| No. of Cores | 12 |
| Overall Diameter | 0.669" (17.0 mm) |
| Nominal Jacket Thickness | Approximately 0.063" (1.6 mm) |
| Conductor | 7/0.20 A (0.22 mm�) #24 AWG (7� #32 AWG) |
| Insulation | �0.053" (�1.35 mm) CPP (Cellular polypropylene) |
| Drain Wire | 7/0.20 A |
| Shield | Approximately 79/0.10 A served (spiral) shield |
| Jacket | �0.126" (�3.2 mm) flexible PVC |
| DC Resistance | At 20�C: Inner Pair Conductor: 0.0247 ?/ft (0.081 ?/m) Shield: 0.0073 ?/ft (0.024 ?/m) |
| Capacitance | At 1 kHz, 68�F (20�C) (partial capacitance value): 14 pF/ft (46 pF/m) |
| Inductance | 0.24 �H/ft (0.8 �H/m) |
| Impedance | 110 ? �10% |
| Attenuation | 0.020 dB/ft (0.065 dB/m) |
| Phase | 0.17 rad/m |
| Noise | Electrostatic: 5.0 mV maximum Electromagnetic: At 10 kHz: 2.0 mV maximum |
| Microphonics | 60 mV |
| Voltage Breakdown | Must withstand at 500 VDC / 15 seconds |
| Insulation Resistance | At 125 VDC, 20�C: 100,000 M? / � m Minimum |
| Tensile Strength | 303 N of one pair (26�C, 65% RH) |
| Emigration | Non-emigrant to ABS resin |
| Temperature | -4 to 158�F (-20 to 70�C ) |
| Standard | AES3-100X(ANSI S.4.40-199X) EBU Rech. 3250-E CEI/IEC 958/CCIR Rec. 647 UL13 CL2X 60�C / UL20002 AWM 30V 60�C VW-1 |
| Weight | 66.13 lb (30 kg) per 328' (100 m) |
