Description
Mogami W308000C Overview

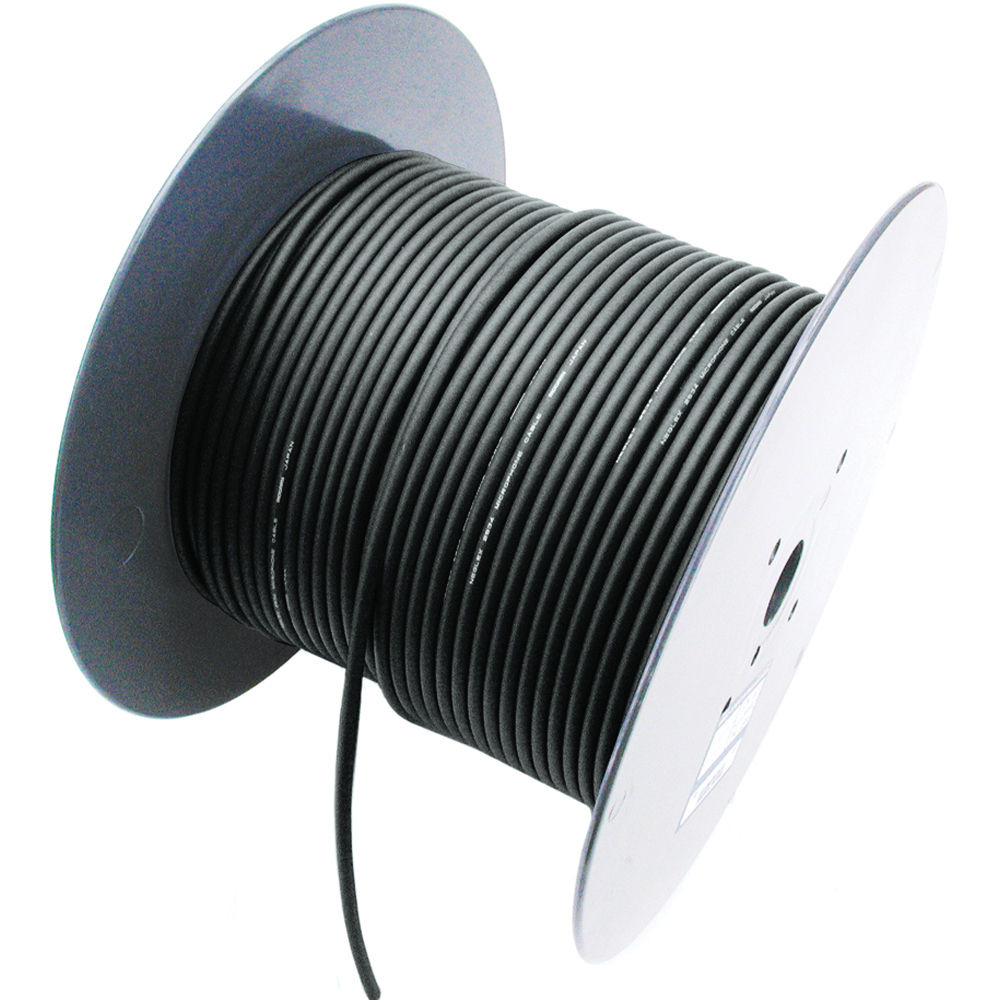

The Mogami W3080 110 ? AES/EBU Digital Audio Cable (Black, 328'/100 m) is flexible and features a handy configuration. This AES/EBU digital audio cable has low capacitance characteristics that can result in high-quality analog audio transmission in general, especially in the high frequency range.
Red/clear insulation
UPC: 801813022100
Mogami W308000C Specs
| Conductor | Quantity: 2 Details: 7/0.18 A (7×#33 AWG) Size: 0.178 mm² (#25AWG) |
| Insulation | Overall Diameter: 0.5" (1.36 mm) Material: XLPE Resistance: 10,000 M? × m minimum at 250 VDC, 68°F (20°C) |
| Drain Wire | Details: 7/0.18 A(7×#33 AWG) Size: 0.178 mm² (#25 AWG) |
| Shield | Served: approximately 60/0.12 A (approximately 60/#37 AWG) |
| Jacket | Overall Diameter: 0.2 ± 0.01" (5 ± 0.3 mm) Material: Flexible PVC |
| DC Resistance | At 68°F (20°C) Inner Conductor: 0.034 ?/Ft (0.11 ?/m) Shield Conductor: 0.0085 ?/Ft (0.028 ?/m) |
| Capacitance | At 1 kHz, 68°F (20°C) 14 pF/Ft (46 pF/m) |
| Inductance | 0.31 µH/Ft (1 µH/m) |
| Impedance | 110 ? ± 5% (characteristic impedance) |
| Attenuation | At 6 MHz, 0.069 dB/mt (0.021 dB/Ft) |
| Phase | 0.2 rad/m (6 MHz) (constant) |
| Noise | Electrostatic Noise: 50 mV maximum Electromagnetic Noise: 2 mV maximum |
| Microphonics | 40 mV maximum |
| Voltage Breakdown | Must withstand at 500 VDC /15 sec, 68°F (20°C) |
| Flex Life | 10,000 cycles |
| Tensile Strength | 343 N |
| Emigration | Non-emigrant to ABS |
| Standard | AES3-100X (ANSI S. 4. 40-199-X) EBU Rech, 3250-E CEI / IEC 958 / CCIR Rec. 647 |
| Temperature | -4 to 140°F (-20 to 60°C) |
| Roll | Size: 328' (100 m) |
| Weight | Per 328' (100 m): 7.27 lb (3.3 kg) |
Packaging Info
| Package Weight | 7.55 lb |
| Box Dimensions (LxWxH) | 11.45 x 10.5 x 3" |
