Description

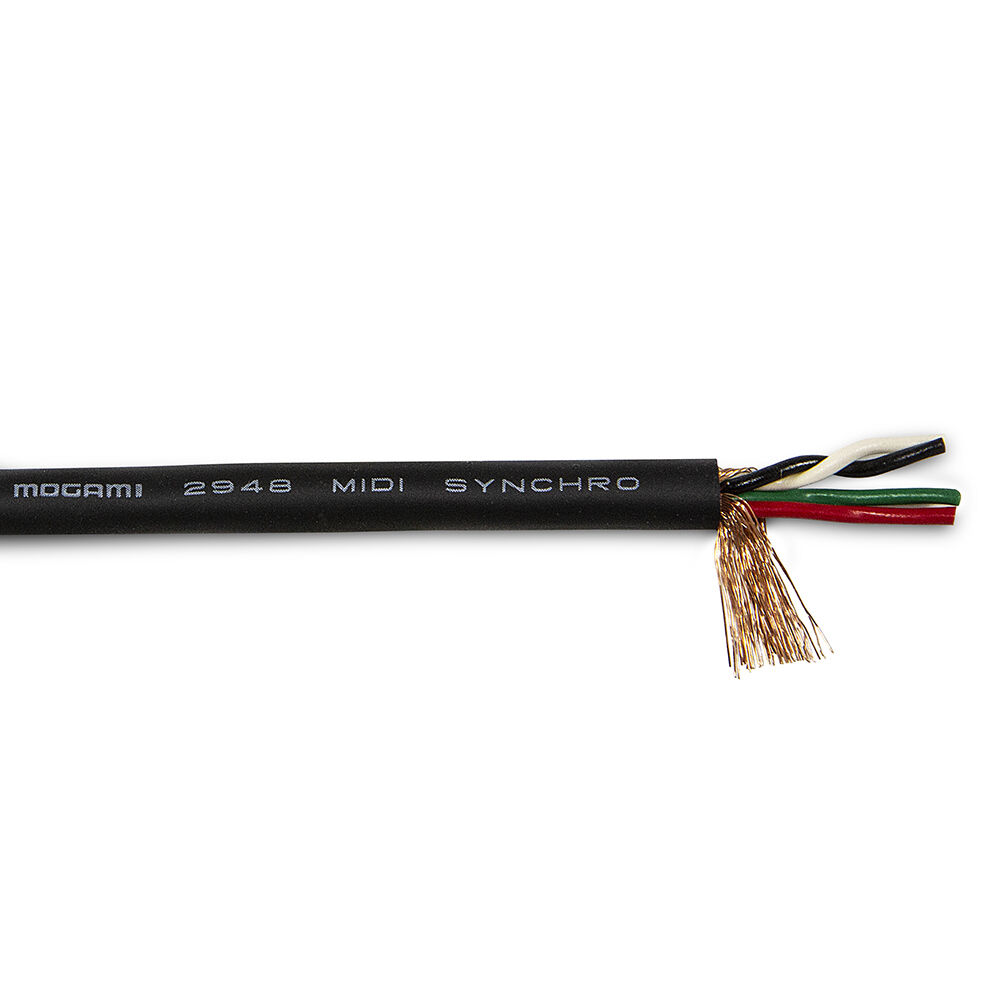

Mogami W2948 Specs
| Connector 1 |
1 x DIN 5-Pin Male Straight
|
| Connector 2 |
1 x DIN 5-Pin Male Straight
|
| Cable Length |
656' / 199.9 m
|
| Number of Conductors |
30
|
| Wire Gauge |
26 AWG
|
| Outer Diameter |
0.197" / 5 mm
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Color |
Black
|
| Insulation Type |
Polyvinyl Chloride (PVC)
|
| Conductor Capacitance |
55 pF/ft at 1 kHz
|
| Conductor DC Resistance |
0.037 Ohms/ft (Up to .039' / .012 m)
|
| Shield DC Resistance |
0.006 Ohms/ft (Up to 656' / 200 m)
|
| Maximum Voltage |
500 V
|
| Bend Radius |
0.5" / 12.7 mm
|
| Rip Cord |
No
|
| Operating Temperature |
68°F / 20°C
|
| Weight |
0.3 oz / 8.6 g
|
