| ₹ 36615.0 includes GST and import duties. | |
| B2B customers can avail ₹ 5583.79 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Mogami W294406E Overview

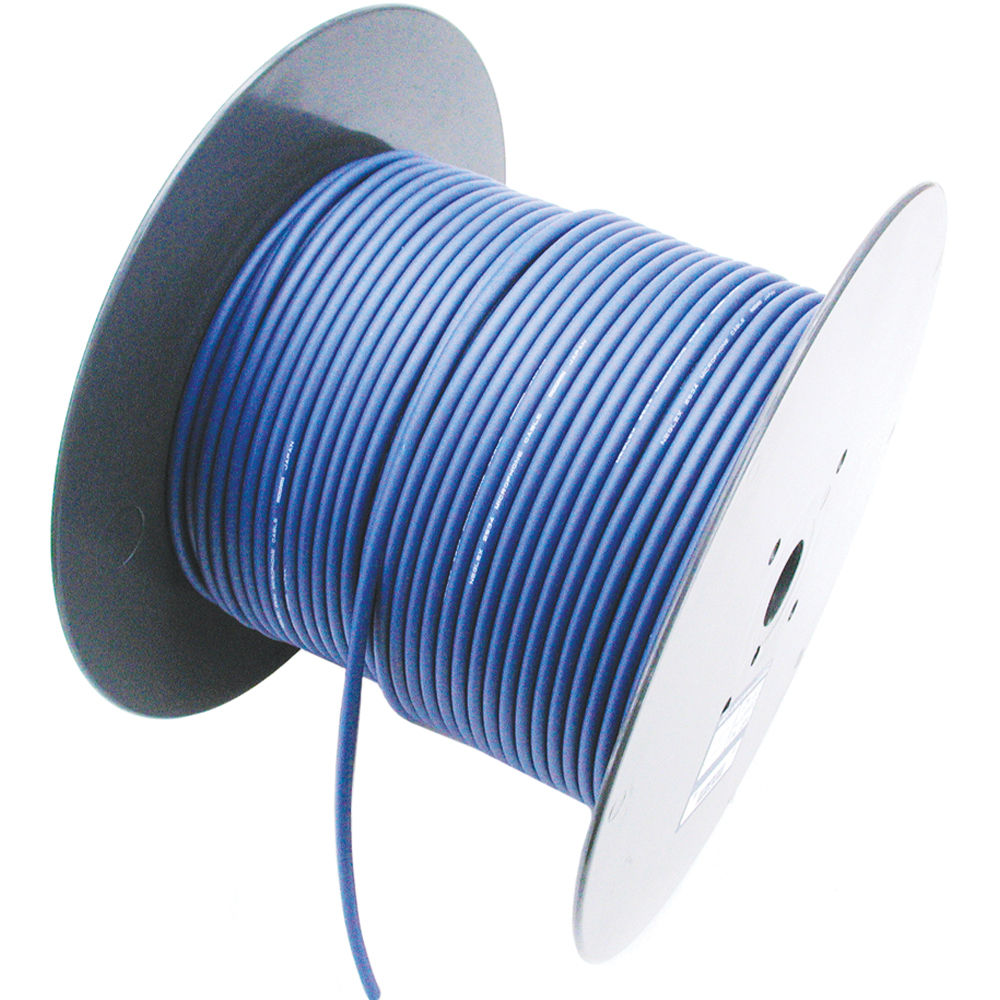

The Mogami W2944 Internal / External Standard Console Wiring Cable (656', Blue) features copper conductors made of NEGLEX OFC and is suitable for high-quality wiring of mixing consoles, rack panels, and studio equipment. It features XLPE (Cross-Linked Polyethylene), which has excellent electrical characteristics and prevents shrink-back during soldering. Moreover, the served (spiral) shield provides easy cable termination and improved sound quality.
Small size for space saving
Very flexible and easy to use
Additional drain wire makes wiring efficient, as it can be crimped by the same size crimp terminal as the conductors
UPC: 801813013313
In the Box
- Mogami W2944 Internal / External Standard Console Wiring Cable (656', Blue)
- Limited Lifetime Manufacturer Warranty
Mogami W294406E Specs
| Conductor | Quantity: 2 Details: 30/0.08 OFC Size: 0.15mm² (#26AWG) |
| Insulation | Overall Diameter: 0.039" (1.0 mm) Material: XLPE (Cross-Insulation Linked Polyethylene) Resistance: 100,000 M?/ x m minimum at 125 VDC, 68°F (20°C) |
| Drain Wire | Details: 7/0.18A Size: 0.18mm² (#25AWG) |
| Shield | Served Shield: Approximately 58/0.10 A |
| Jacket | Overall Diameter: 0.098" (2.5 mm) Material: PVC |
| DC Resistance | At 68°F (20°C) Inner Conductor: 0.040 W/ft (0.13 W/m) Shield: 0.011 W/ft (0.035 W/m) |
| Capacitance | At 1 KHz, 68°F (20°C) K0: 40 pF/ft (130 pF/m) K1: 3.7 pF/ft (12 pF/m) Quad-connection |
| Inductance | Between Conductors at 1 KHz, 68°F (20°C): 0.18 ?H/Ft (0.6 ?H/m) |
| Noise | Electrostatic: 20 mV maximum Electromagnetic: 0.1mV maximum |
| Breakdown Volts | Must withstand at 500 VDC/15 sec. |
Packaging Info
| Package Weight | 6.45 lb |
| Box Dimensions (LxWxH) | 6.3 x 6.2 x 4.5" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 35882.7 |
| 3-5 | ₹ 35516.55 |
| 5-10 | ₹ 34784.25 |
| 10+ | ₹ 34051.95 |
Bulk discount will be automatically applied during checkout based on quantity.
