Description
The Mogami W2944 Internal / External Standard Console Wiring Cable (164', Black) features copper conductors made of NEGLEX OFC and is suitable for high-quality wiring of mixing consoles, rack panels, and studio equipment. It features XLPE (Cross-Linked Polyethylene), which has excellent electrical characteristics and prevents shrink-back during soldering. Moreover, the served (spiral) shield provides easy cable termination and improved sound quality.
- Small size for space saving
- Very flexible and easy to use
- Additional drain wire makes wiring efficient, as it can be crimped by the same size crimp terminal as the conductors
UPC: 801813013061
In the Box

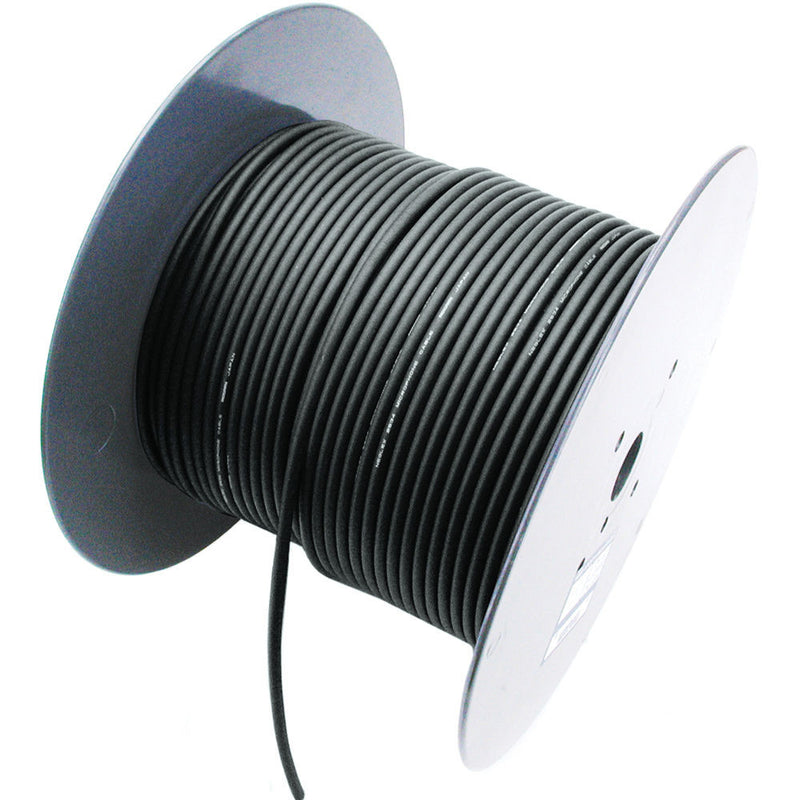

Mogami W2944 Internal / External Standard Console Wiring Cable (164', Black)
- Lifetime Warranty
| Conductor | Quantity: 2 Details: 30/0.08 OFC Size: 0.15mm� (#26AWG) |
| Insulation | Overall Diameter: 0.039" (1.0 mm) Material: XLPE (Cross-Insulation Linked Polyethylene) Resistance: 100,000 M?/ x m minimum at 125 VDC, 68�F (20�C) |
| Drain Wire | Details: 7/0.18A Size: 0.18mm� (#25AWG) |
| Shield | Served Shield: Approximately 58/0.10 A |
| Jacket | Overall Diameter: 0.098" (2.5 mm) Material: PVC |
| DC Resistance | At 68�F (20�C) Inner Conductor: 0.040 W/ft (0.13 W/m) Shield: 0.011 W/ft (0.035 W/m) |
| Capacitance | At 1 KHz, 68�F (20�C) K 0 : 40 pF/ft (130 pF/m) K 1 : 3.7 pF/ft (12 pF/m) Quad-connection |
| Inductance | Between Conductors at 1 KHz, 68�F (20�C): 0.18 ?H/Ft (0.6 ?H/m) |
| Noise | Electrostatic: 20 mV maximum Electromagnetic: 0.1mV maximum |
| Breakdown Volts | Must withstand at 500 VDC/15 sec. |
| Roll | Size: 164' (50 m) Weight per 200 m Roll: 5.5 lb (2.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 7.0 x 7.0 x 1.0" |
