Description

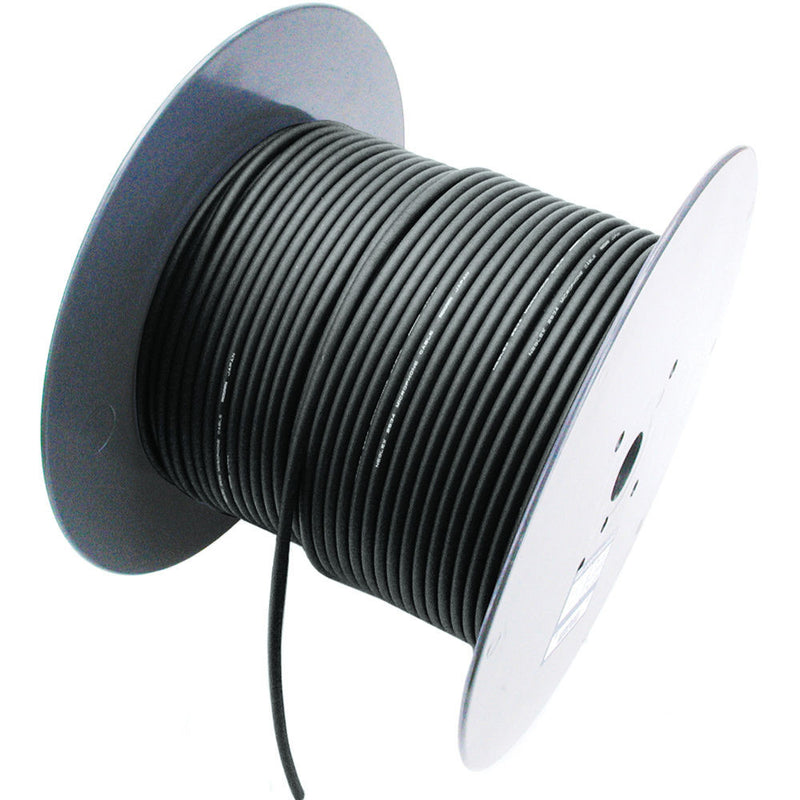

The Mogami�W2931 4-Channel Multicore Microphone Snake Cable (328', Black) is designed for the high-level audio performance and features good electrical and mechanical characteristics while remaining compact, flexible, and easy to use.
- Individually twisted shielded pairs
- XLPE (Cross Linked Polyethylene) insulation provides good electrical characteristics and will not melt or shrink back during soldering
- Rugged and flexible construction that is easy to handle, even at temperatures down to 4�F (20�C)
- Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped
- Outer jackets of each pair are color coded by standard resistor color code, allowing quick identification of conductor pairs
- Inner conductors are also color coded based on the international standard resistor color code
- Each pair is color coded by jacket and conductor color combination
- Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplifies termination and can be crimped by the same size contact as the inner conductor pair
UPC: 801813014167
In the Box
Mogami W2931 4-Channel Multicore Microphone Snake Cable (328', Black)
- Lifetime Warranty
| Conductor | 30/0.08 A (0.15 mm�) #26AWG (30�#40AWG) |
| Insulation | � 0.039" (1 mm) XLPE (Cross Linked Polyethylene) |
| Drain Wire | 7/0.18 TA (0.18 mm�) #25A WG (7�#33 AWG) |
| Shield | Approximately 58/0.10 A served (spiral) shield |
| Jacket | � 0.110" (2.8 mm) Flexible PVC |
| No. of Channels | 4 |
| Overall Diameter | 0.339" (8.6 mm) |
| Thickness | Approximately 0.039" (1.0 mm) |
| DC Resistance | Inner Pair Conductor: 0.040 ?/ft (0.13 ?/m) Shield: 0.0095 ?/ft (0.031 ?/m) |
| Capacitance | At 1 kHz, 68�F (20�C) (partial capacitance value) K0: 40 pF/ft (130 pF/m ) K1: 3.7 pF/ft (12 pF/m ) |
| Inductance | 0.18 �H/ft (0.6 �H/m) |
| Noise | Electrostatic: Hum Pick-up: 2.5 mV maximum Electromagnetic: At 10 kHz (inductance of the toroidal core: 595 �H): 0.1 mV maximum |
| Microphonics | Method (Stepping on cable): 50 mV Maximum at 50 k?/ Load |
| Voltage Breakdown | Must withstand at 500 VDC/15 seconds |
| Insulation Resistance | At 125 VDC, 20�C: 100,000 M?/ � m Minimum |
| Tensile Strength | For one pair (26�C, 65% RH): 274 N |
| Emigration | Non-emigrant to ABS resin |
| Temperature | -4 to 158�F (-20 to 70�C ) |
| Standard | UL13 CL2X 60#176;C / UL 20002 AWM 30V 60�C VW-1 |
| Weight | 19.84 lb (9 kg) per 328' (100 m) |
