| ₹ 74270.0 includes GST and import duties. | |
| B2B customers can avail ₹ 11326.18 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
The Mogami W2901 Miniature Balanced / Lavalier Microphone Cable (Black) features the necessary mechanical strength and flexibility for lavalier microphones and other applications. The W2901 cable has been designed for better tensile strength and longer flex life, sacrificing some sound quality and creating a slightly more difficult soldering job because of the use of copper-tin alloy conductor, which makes this cable very strong and durable. This cable features black / red insulation.
UPC: 801813049251
In the Box

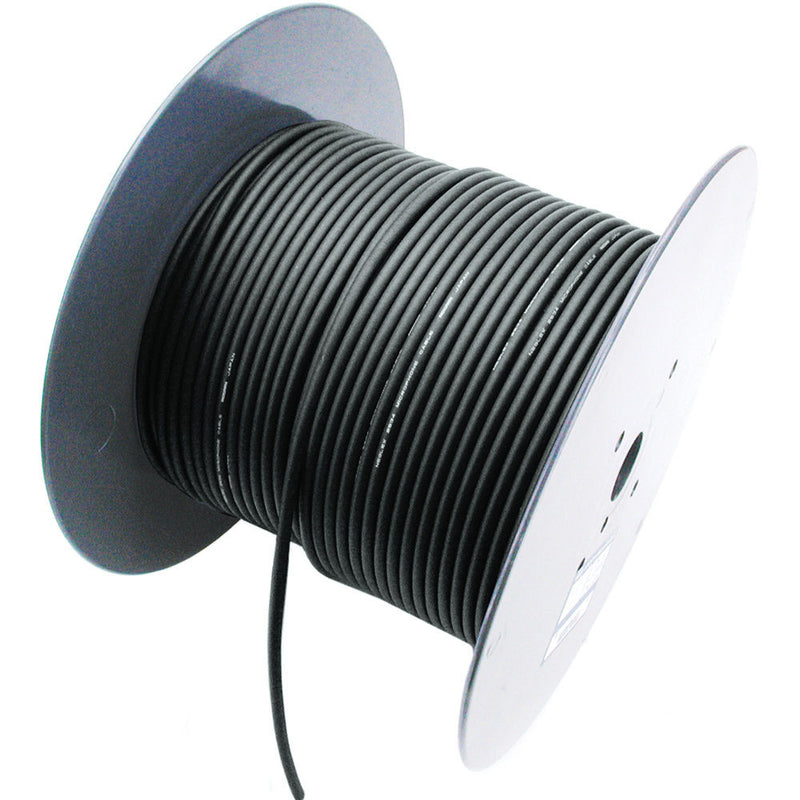

Mogami W2901 Miniature Balanced / Lavalier Microphone Cable (Black)
- Lifetime Warranty
| Conductor | Quantity: 2 Details: 43/0.04 Cu-Sn Size: 0.054 mm� (#30 AWG) |
| Insulation | Overall Diameter: 0.02" (0.6 mm) Material: Polyester Resistance: 100,000 M? � m minimum at 125 VDC, 68�F (20�C) |
| Material | Filler Thread: Polypropylene |
| Shield | Double Served Shield: approximately 35/0.08 A, approximately 40/0.08 A |
| Jacket | Overall Diameter: 0.08" (2.16 mm) Material: Flexible PVC |
| DC Resistance | At 68�F (20�C) Inner Conductor: 0.125 ?/ft (0.41 ?/m) Shield: 0.0214 ?/ft (0.07 ?/m) |
| Capacitance | At 1 kHz, 68�F (20�C) K0: 54 pF/ft (176 pF/m) K1: 9.8 pF/ft (32 pF/m) |
| Inductance | 0.24 �H/ft (0.8 �H/m) at 1 kHz 68�F (20�C) between conductors |
| Noise | Electrostatic Noise: 1 mV maximum Electromagnetic Noise: 0.15 mV maximum |
| Microphonics | 40 mV at 50 k? load |
| Voltage Breakdown | Must withstand at 500 VDC /15 sec |
| Flex Life | 177,000 cycles |
| Tensile Strength | 176 N |
| Emigration | Non-emigrant to ABS |
| Temperature | -4 to 158�F (-20 to 70�C) |
| Roll | Size: 1,000' (305 m) |
| Weight | 5.95 lb (2.7 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 8.15 lb |
| Box Dimensions (LxWxH) | 12.0 x 9.6 x 6.7" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 72784.6 |
| 3-5 | ₹ 72041.9 |
| 5-10 | ₹ 70556.5 |
| 10+ | ₹ 69071.1 |
Bulk discount will be automatically applied during checkout based on quantity.
