| ₹ 68760.0 includes GST and import duties. | |
| B2B customers can avail ₹ 10485.9 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

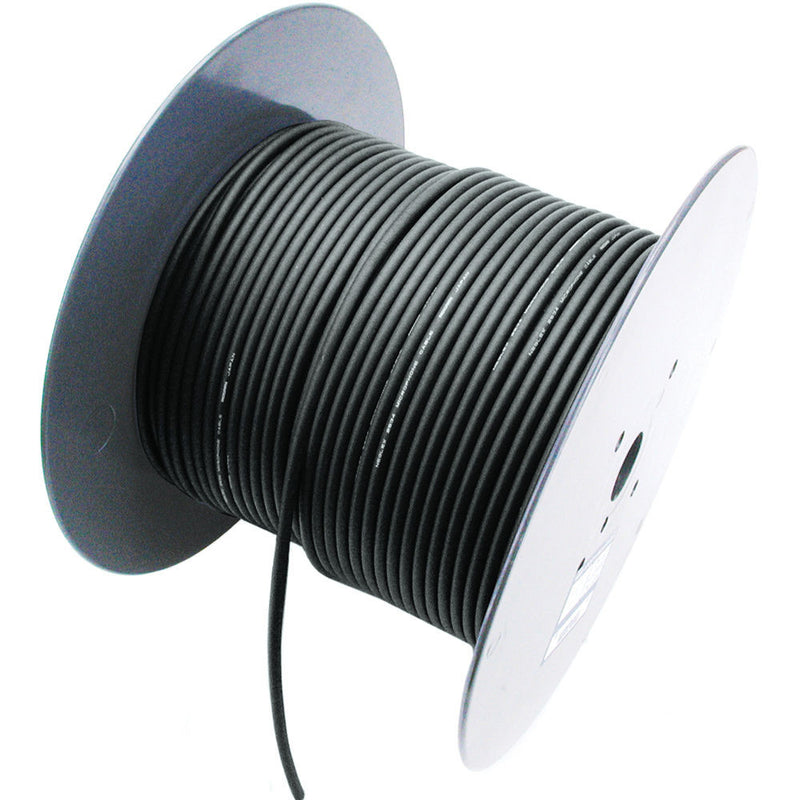

The Mogami W2791 High-Quality Balanced Microphone Cable (328', Black) is designed for rugged remote and on-stage use in sound reinforcement, TV, radio broadcasting, etc. Its compact size together with a heavy-duty binder and filler system and a braided shield make it ideal for all continuous handling applications. It exhibits very low microphonic pick-up and can operate at very cold temperatures down to�4�F (-20�C) without losing its flexibility. The 105 strands of 44 AWG annealed bare copper allow for flexibility with good flex life, while maintaining excellent strength characteristics.
UPC: 801813008371
In the Box
Mogami W2791 High-Quality Balanced Microphone Cable (328', Black)
- Lifetime Warranty
| Tensile Strength | 578 N |
| Braided Shield | Coverage: over 95% |
| Conductor | Quantity: 2 Details: 105/0.05 A Size: 0.206 mm� (#24 AWG) |
| Insulation | Overall Diameter: 0.059" (1.5 mm) Material: XLPE (cross-linked polyethylene) |
| Shield | Braid 0.10 A/9/16 |
| Jacket | Overall Diameter: 0.217" (5.5 mm) Material: Flexible PVC |
| DC Resistance | Inner Conductor: 0.027 ?/ft (0.09 ?/m) Shield: 0.006 ?/ft (0.002 ?/m) |
| Capacitance | K0: 26 pF/ft (86 pF/m) at 1 kHz, 20�C K1: 3.1 pF/ft (10 pF/m) at 1 kHz, 20�C |
| Inductance Between Conductors | 0.24 �H/ft (0.8 �H/m) at 1 kHz, 20�C |
| Noise | Electrostatic: 250 mV maximum Electromagnetic: 0.15 mV maximum |
| Microphonics | 30 mV maximum at 50 k? load |
| Voltage Breakdown | Must withstand at 125 VDC /15 seconds |
| Insulation Resistance | 100,000 M? � m Minimum at 125 VDC, 68? F (20�C) |
| Flex Life | 164,000 cycles |
| Emigration | Non-emigrant to ABS |
| Temperature | -4 to 158�F (-20 to 70�C) |
| Size | Roll: 328' (100 m) |
| Weight | 19.84 lb (9 kg) 656.16'per (200 m) |
| Packaging Info | |
|---|---|
| Package Weight | 9.3 lb |
| Box Dimensions (LxWxH) | 10.0 x 7.6 x 2.5" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 67384.8 |
| 3-5 | ₹ 66697.2 |
| 5-10 | ₹ 65322.0 |
| 10+ | ₹ 63946.8 |
Bulk discount will be automatically applied during checkout based on quantity.
